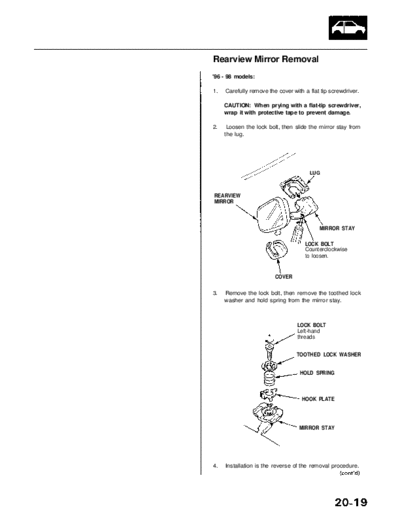

Image preview - the first page of the document



>> Download RL9604S20019B documenatation <<

Text preview - extract from the document

Main Menu   Table of Contents




                                Rearview Mirror Removal
                                '96 - 98 models:

                                1.   Carefully remove the cover with a flat tip screwdriver.

                                     CAUTION: When prying with a flat-tip screwdriver,
                                     wrap it with protective tape to prevent damage.

                                2.    Loosen the lock bolt, then slide the mirror stay from
                                     the lug.




                                                                       LUG



                                REARVIEW
                                MIRROR



                                                                           MIRROR STAY

                                                                     LOCK BOLT
                                                                     Counterclockwise
                                                                     to loosen.


                                                         COVER

                                3.   Remove the lock bolt, then remove the toothed lock
                                     washer and hold spring from the mirror stay.



                                                                  LOCK BOLT
                                                                  Left-hand
                                                                  threads


                                                                  TOOTHED LOCK WASHER


                                                                   HOLD SPRING



                                                                    HOOK PLATE




                                                                   MIRROR STAY




                                4.   Installation is the reverse of the removal procedure.
                Main Menu                 Table of Contents


Mirrors
 Rearview Mirror Removal (cont'd)
 '99 - 01 models (With automatic dimming):                     4.    Remove the wire cover from the mirror bracket by
                                                                     releasing the hooks in the sequence shown.
 CAUTION: When prying with a flat-tip screwdriver,
 wrap it with protective tape to prevent damage.                                             MIRROR
                                                                              HOOK           BRACKET
 1.    Remove the front ceiling light (see section 23).

 2.    Disconnect the connector, and carefully remove the
       bracket cover by releasing the hooks. Take care not
       to scratch the cover and mirror bracket.
       CONNECTOR



                                                                    WIRE
                                                                    COVER      HOOK

                                                               5.    Install the rearview mirror by sliding it over the lug
                                                                     until its spring contacts the lug. Gently tap the mir-
                                       MIRROR                        ror bracket with a flat-tip screwdriver and a plastic
                                       BRACKET
                                                                     hammer. Be careful not to damage the wire.

                                                                                      LUG
      BRACKET
      COVER                          HOOKS
 3.    To release the spring, slide the rearview mirror for-
       ward by gently tapping the mirror bracket with a
       flat-tip screwdriver and a plastic hammer. Remove
       the mirror from the lug.


       LUG


                                                                                                                 REARVIEW
                                                                                                                 MIRROR

                                                               6.    Install the wire cover in the sequence shown. Take
                                                                     care not to damage the hooks.
                                                                     WIRE COVER




                                                 SPRING



 REARVIEW
 MIRROR                                                                                                   HOOK


                                                                       HOOK
                                                               7.    Install the bracket cover, and connect the connector,
                                                                     then install the roof console.
