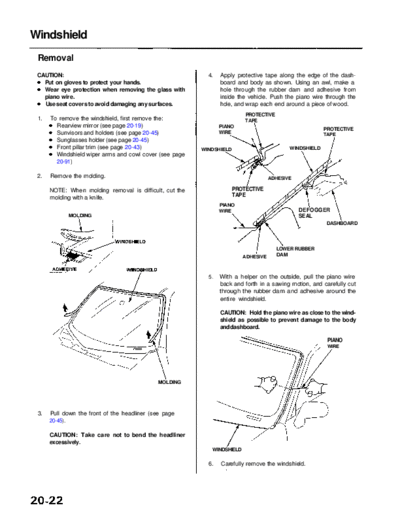

Image preview - the first page of the document



>> Download RL9604S20022A documenatation <<

Text preview - extract from the document

              Main Menu                Table of Contents


Windshield
 Removal
 CAUTION:                                                    4.   Apply protective tape along the edge of the dash-
   Put on gloves to protect your hands.                           board and body as shown. Using an awl, make a
   Wear eye protection when removing the glass with               hole through the rubber dam and adhesive from
   piano wire.                                                    inside the vehicle. Push the piano wire through the
   Use seat covers to avoid damaging any surfaces.                hole, and wrap each end around a piece of wood.
                                                                            PROTECTIVE
 1.   To remove the windshield, first remove the:                           TAPE
        Rearview mirror (see page 20-19)                          PIANO                                   PROTECTIVE
        Sunvisors and holders (see page 20-45)                    WIRE                                    TAPE
        Sunglasses holder (see page 20-45)
        Front pillar trim (see page 20-43)                 WINDSHIELD                        WINDSHIELD
        Windshield wiper arms and cowl cover (see page
        20-91)

 2.   Remove the molding.                                                             ADHESIVE

      NOTE: When molding removal is difficult, cut the                  PROTECTIVE
      molding with a knife.                                             TAPE
                                                                  PIANO
                                                                  WIRE                           DEFOGGER
            MOLDING                                                                              SEAL
                                                                                                           DASHBOARD




                                                                                         LOWER RUBBER
                                                                           ADHESIVE
                                                                                         DAM



                                                             5.   With a helper on the outside, pull the piano wire
                                                                  back and forth in a sawing motion, and carefully cut
                                                                  through the rubber dam and adhesive around the
                                                                  entire windshield.

                                                                  CAUTION: Hold the piano wire as close to the wind-
                                                                  shield as possible to prevent damage to the body
                                                                  and dashboard.

                                                                                                           PIANO
                                                                                                           WIRE




                                              MOLDING




 3.   Pull down the front of the headliner (see page
      20-45).

      CAUTION: Take care not to bend the headliner
      excessively.
                                                              WINDSHIELD

                                                             6.   Carefully remove the windshield.
