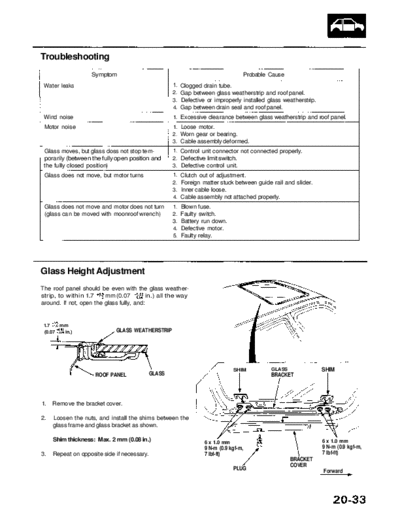

Text preview - extract from the document
             Main Menu                Table of Contents




Troubleshooting
                    Symptom                                                           Probable Cause
 Water leaks                                         1. Clogged drain tube.
                                                     2. Gap between glass weatherstrip and roof panel.
                                                     3. Defective or improperly installed glass weatherstrip.
                                                     4. Gap between drain seal and roof panel.
 Wind noise                                          1. Excessive clearance between glass weatherstrip and roof panel.
 Motor noise                                         1. Loose motor.
                                                     2. Worn gear or bearing.
                                                     3. Cable assembly deformed.
 Glass moves, but glass doss not stop tem-           1. Control unit connector not connected properly.
 porarily (between the fully open position and       2. Defective limit switch.
 the fully closed position)                          3. Defective control unit.
 Glass does not move, but motor turns                1. Clutch out of adjustment.
                                                     2. Foreign matter stuck between guide rail and slider.
                                                     3. Inner cable loose.
                                                     4. Cable assembly not attached properly.
 Glass does not move and motor does not turn         1.   Blown fuse.
 (glass can be moved with moonroof wrench)           2.   Faulty switch.
                                                     3.   Battery run down.
                                                     4.   Defective motor.
                                                     5.   Faulty relay.




Glass Height Adjustment
The roof panel should be even with the glass weather-
strip, to within 1.7     mm (0.07          in.) all the way
around. If not, open the glass fully, and:


 1.7     mm
 (0.07    in.)                GLASS WEATHERSTRIP




                                                                               SHIM            GLASS             SHIM
