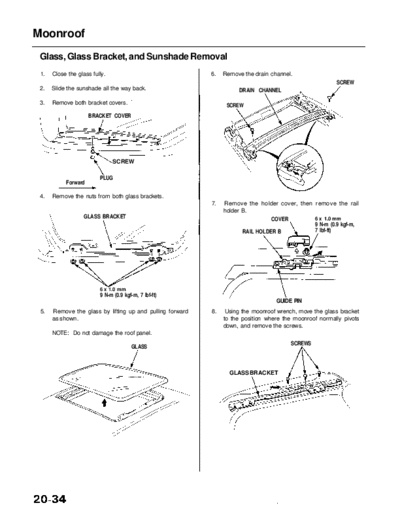

Image preview - the first page of the document



>> Download RL9604S20034A documenatation <<

Text preview - extract from the document

              Main Menu                      Table of Contents

Moonroof
 Glass, Glass Bracket, and Sunshade Removal
 1.   Close the glass fully.                                     6.   Remove the drain channel.
                                                                                                                 SCREW
 2.   Slide the sunshade all the way back.                                 DRAIN CHANNEL

 3.   Remove both bracket covers.                                      SCREW
                     BRACKET COVER




                                SCREW

                          PLUG
           Forward

 4.   Remove the nuts from both glass brackets.
                                                                 7.   Remove the holder cover, then remove the rail
                                                                      holder B.
                   GLASS BRACKET                                                       COVER            6 x 1.0 mm
                                                                                                        9 N-m (0.9 kgf-m,
                                                                             RAIL HOLDER B              7 Ibf-ft)




                          6 x 1.0 mm
                          9 N-m (0.9 kgf-m, 7 Ibf-ft)
                                                                                         GUIDE PIN
 5.   Remove the glass by lifting up and pulling forward         8.    Using the moonroof wrench, move the glass bracket
      as shown.                                                       to the position where the moonroof normally pivots
                                                                      down, and remove the screws.
      NOTE: Do not damage the roof panel.
                                                                                               SCREWS
                                        GLASS



                                                                        GLASS BRACKET
             Main Menu                    Table of Contents




9. Remove the rail holder A.                                  12. Slide the sunshade forward, then remove it.

           6 x 1.0 mm
           9 N-m (0.9 kgf-m,
           7 Ibf-ft
                                   RAIL HOLDER A
                                                                                   SUNSHADE




             GLASS BRACKET




                                                              13. Installation is the reverse of the removal procedure.

                                                                  NOTE: Check the glass height (see page 20-33).

                                                              14. Check for water leaks.
                                 DRAIN CHANNEL
                                 ROD SLIDER
DRAIN CHANNEL                                                     NOTE: Do not use high-pressure water.
ROD




                                                     GUIDE
                                                     RAIL




 DRAIN CHANNEL ROD STOP
 Rotate as shown to remove it from the guide rail.


10. Remove the drain channel rod slider by moving the
    cable slider forward using the moonroof wrench.

11. Detach the drain channel rod stop from the cutout
    of the guide rail as shown.
