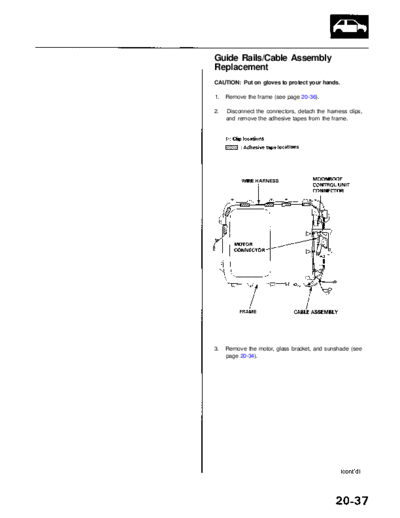

Image preview - the first page of the document



>> Download RL9604S20037A documenatation <<

Text preview - extract from the document

Main Menu   Table of Contents




                                Guide Rails/Cable Assembly
                                Replacement
                                CAUTION: Put on gloves to protect your hands.

                                1.   Remove the frame (see page 20-36).

                                2.   Disconnect the connectors, detach the harness clips,
                                     and remove the adhesive tapes from the frame.




                                3.   Remove the motor, glass bracket, and sunshade (see
                                     page 20-34).
               Main Menu                  Table of Contents


Moonroof
 Guide Rails/Cable Assembly Replacement (cont'd)
 4.   Remove the nuts, lift off each guide rail, then remove the cable assembly with the sliders attached.

      NOTE: Take care not to bend the cable tubes and guide rails.

         Bolt, screw locations                       Nut locations



               6 x 1.0 mm                                     6 x 1.0 mm                     6 x 1.0 mm
               9.8 N-m (1.0 kgf-m,                            9.8 N-m (1.0 kgf-m,            9 N-m (0.9 kgf-m,
               7.2 Ibf-ft)                                    7.2 Ibf-ft)                    7 Ibf-ft)




                                                                                                                 CABLE
                                                                              FRAME SEAL                         ASSEMBLY
                                                      GUIDE
                                     SLIDER
                                                      RAIL




                        FRAME




          GROMMET
                                              INNER CABLE



                                                    GROUND              GROMMET
                                      FRAME                                                CABLE
                                                    PLATE
                                                                                           TUBES

                                                                                                                       MOTOR
                            SEALANT

 5.   Installation is the reverse of the removal procedure.

      NOTE:
        Damaged parts should be replaced.
        Grease the sliding portion with Super High Temp Urea Grease, P/N 08758 - 9002.
        Fill the groove in each grommet with sealant.
        Install the frame seal securely.
        Before installing the motor, make sure both sliders are parallel.
        Before installing the motor, install the frame and glass, then check the opening drag (see page 20-41).
