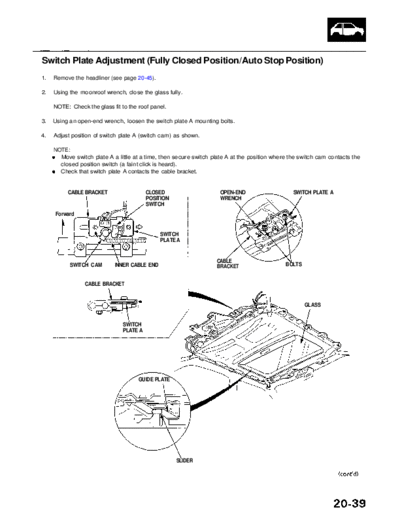

Image preview - the first page of the document



>> Download RL9604S20039A documenatation <<

Text preview - extract from the document

            Main Menu                 Table of Contents




Switch Plate Adjustment (Fully Closed Position/Auto Stop Position)
1.   Remove the headliner (see page 20-45).

2.   Using the moonroof wrench, close the glass fully.

     NOTE: Check the glass fit to the roof panel.

3.   Using an open-end wrench, loosen the switch plate A mounting bolts.

4.   Adjust position of switch plate A (switch cam) as shown.

     NOTE:
       Move switch plate A a little at a time, then secure switch plate A at the position where the switch cam contacts the
       closed position switch (a faint click is heard).
       Check that switch plate A contacts the cable bracket.


          CABLE BRACKET                   CLOSED                     OPEN-END                    SWITCH PLATE A
                                          POSITION                   WRENCH
                                          SWITCH
     Forward


                                               SWITCH
                                               PLATE A


                                                                   CABLE
           SWITCH CAM       INNER CABLE END                        BRACKET                    BOLTS


                 CABLE BRACKET


                                                                                                      GLASS


                                SWITCH
                                PLATE A




                                      GUIDE PLATE




                                                     SLIDER
                  Main Menu               Table of Contents


Moonroof
 Switch Plate Adjustment (Fully Closed Position/Auto Stop Position) (cont'd)
 5.   Using the moonroof wrench, open the glass to the auto stop position as shown.

 6.   Using an open-end wrench, loosen the switch plate B mounting bolts.

 7.   Adjust position of switch plate B (switch cam) as shown.

      NOTE:
        Move switch plate B a little at a time, then secure switch plate B at the position where the switch cam contacts the
        auto stop position switch (a faint click is heard).
        Check that switch plate B contacts the cable bracket.


                                   SWITCH CAM                        OPEN-END                      SWITCH PLATE B
                                                                     WRENCH
               INNER CABLE END

                                              Forward



SWITCH
PLATE B


       AUTO                    CABLE BRACKET                       CABLE
       STOP                                                        BRACKET                    BOLTS
       POSITION
       SWITCH
                   CABLE BRACKET


                                                                                                        GLASS




                                                                                            130 mm
                                                                                            (5.1 in.)




 8.   Check the operation of the glass (from the tilt-up position to the fully closed position, from the fully opened position
      to the auto stop position, from the auto stop position to the fully closed position) by operating the moonroof switch.
