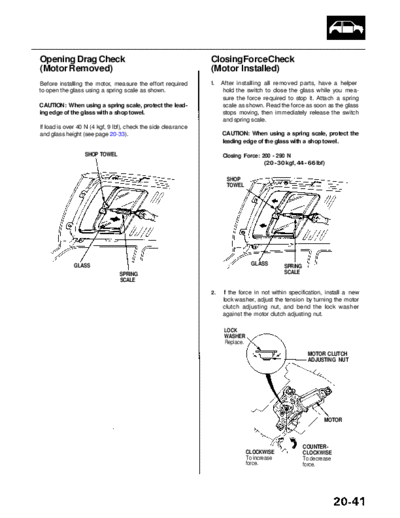

Image preview - the first page of the document



>> Download RL9604S20041A documenatation <<

Text preview - extract from the document

             Main Menu                    Table of Contents




Opening Drag Check                                              Closing Force Check
(Motor Removed)                                                 (Motor Installed)
Before installing the motor, measure the effort required        1.   After installing all removed parts, have a helper
to open the glass using a spring scale as shown.                     hold the switch to close the glass while you mea-
                                                                     sure the force required to stop it. Attach a spring
CAUTION: When using a spring scale, protect the lead-                scale as shown. Read the force as soon as the glass
ing edge of the glass with a shop towel.                             stops moving, then immediately release the switch
                                                                     and spring scale.
If load is over 40 N (4 kgf, 9 Ibf), check the side clearance
and glass height (see page 20-33).                                   CAUTION: When using a spring scale, protect the
                                                                     leading edge of the glass with a shop towel.

                  SHOP TOWEL                                         Closing Force: 200 - 290 N
                                                                                     (20 - 30 kgf, 44 - 66 Ibf)

                                                                       SHOP
                                                                       TOWEL




              GLASS                                                                GLASS       SPRING
                                 SPRING                                                        SCALE
                                 SCALE

                                                                2.   If the force in not within specification, install a new
                                                                     lock washer, adjust the tension by turning the motor
                                                                     clutch adjusting nut, and bend the lock washer
                                                                     against the motor clutch adjusting nut.

                                                                      LOCK
                                                                      WASHER
                                                                      Replace.

                                                                                                         MOTOR CLUTCH
                                                                                                         ADJUSTING NUT




                                                                                                                MOTOR



                                                                                                        COUNTER-
                                                                                 CLOCKWISE              CLOCKWISE
                                                                                 To increase            To decrease
                                                                                 force.                 force.
