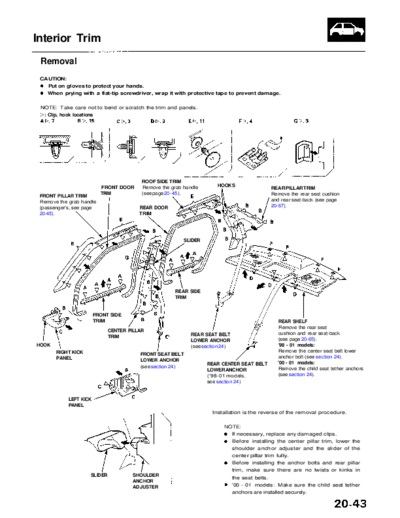

Image preview - the first page of the document



>> Download RL9604S20043A documenatation <<

Text preview - extract from the document

               Main Menu                 Table of Contents


Interior Trim

 Removal
 CAUTION:
   Put on gloves to protect your hands.
   When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.


 NOTE: Take care not to bend or scratch the trim and panels.
  : Clip, hook locations




                                         ROOF SIDE TRIM
                           FRONT DOOR    Remove the grab handle          HOOKS
                                                                                                REAR PILLAR TRIM
 FRONT PILLAR TRIM        TRIM           (see page 20-45).                                      Remove the rear seat cushion
 Remove the grab handle                                                                         and rear seat-back (see page
 (passenger's, see page                 REAR DOOR                                               20-67).
 20-45).                                TRIM




                                                             SLIDER




                                                      REAR SIDE
                                                      TRIM


                        FRONT SIDE
                        TRIM                                                                       REAR SHELF
                                                                                                   Remove the rear seat
                             CENTER PILLAR
                                                               REAR SEAT BELT                      cushion and rear seat-back
                             TRIM
                                                               LOWER ANCHOR                        (see page 20-65).
HOOK                                                           (see section 24)                    '98 - 01 models:
       RIGHT KICK                                                                                  Remove the center seat belt lower
                                        FRONT SEAT BELT                                            anchor bolt (see section 24).
       PANEL                            LOWER ANCHOR
                                                                      REAR CENTER SEAT BELT        '00 - 01 models:
                                        (see section 24)                                           Remove the child seat tether anchors
                                                                      LOWER ANCHOR
                                                                      ('98-01 models,              (see section 24).
                                                                      see section 24)


            LEFT KICK
            PANEL
                                                                       Installation is the reverse of the removal procedure.

                                                                            NOTE:
                                                                              If necessary, replace any damaged clips.
                                                                              Before installing the center pillar trim, lower the
                                                                              shoulder anchor adjuster and the slider of the
                                                                              center pillar trim fully.
                                                                              Before installing the anchor bolts and rear pillar
                                                                              trim, make sure there are no twists or kinks in
                    SLIDER           SHOULDER
                                                                                  the seat belts.
                                     ANCHOR
                                     ADJUSTER                                     '00 - 01 models: Make sure the child seat tether
                                                                                  anchors are installed securely.
