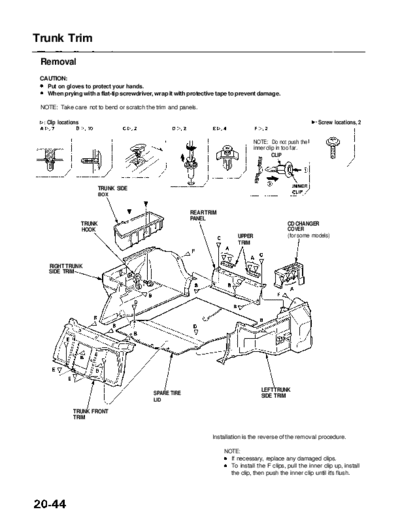

             Main Menu                Table of Contents


Trunk Trim

 Removal
 CAUTION:
   Put on gloves to protect your hands.
   When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

 NOTE: Take care not to bend or scratch the trim and panels.

   Clip locations                                                                                            Screw locations, 2


                                                                                  NOTE: Do not push the
                                                                                  inner clip in too far.
                                                                                           CLIP




                         TRUNK SIDE
                            BOX


                                                          REAR TRIM
                                                          PANEL
                    TRUNK                                                                       CD CHANGER
                    HOOK                                                                        COVER
                                                                           UPPER                (for some models)
                                                                           TRIM



    RIGHT TRUNK
    SIDE TRIM




                                                                                     LEFT TRUNK
                                            SPARE TIRE                               SIDE TRIM
                                            LID

              TRUNK FRONT
              TRIM


                                                                 Installation is the reverse of the removal procedure.

                                                                      NOTE:
                                                                        If necessary, replace any damaged clips.
                                                                        To install the F clips, pull the inner clip up, install
                                                                        the clip, then push the inner clip until it's flush.
