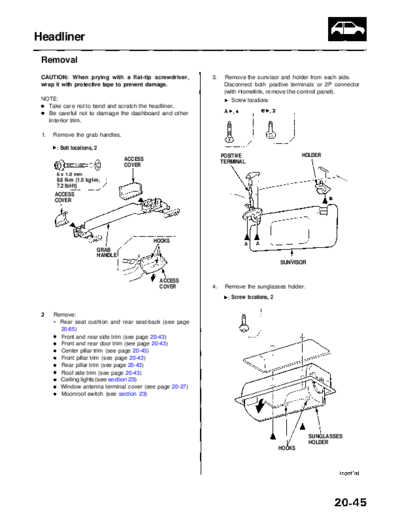

Image preview - the first page of the document
RL9604S20045A


>> Download RL9604S20045A documenatation <<

Text preview - extract from the document
              Main Menu              Table of Contents


Headliner
 Removal
 CAUTION: When prying with a flat-tip screwdriver,       3.    Remove the sunvisor and holder from each side.
 wrap it with protective tape to prevent damage.               Disconnect both positive terminals or 2P connector
                                                               (with Homelink, remove the control panel).
 NOTE:                                                           Screw locations
   Take care not to bend and scratch the headliner.
   Be careful not to damage the dashboard and other
   interior trim.

 1.   Remove the grab handles.

        Bolt locations, 2
                                                              POSITIVE                        HOLDER
                                 ACCESS
                                                              TERMINAL
                                 COVER
       6 x 1.0 mm
       9.8 N-m (1.0 kgf-m,
       7.2 Ibf-ft)
      ACCESS
      COVER




                                          HOOKS
                        GRAB
                        HANDLE
                                                                                      SUNVISOR


                                             ACCESS
                                             COVER       4.    Remove the sunglasses holder.
                                                                 Screw locations, 2


      Remove:
