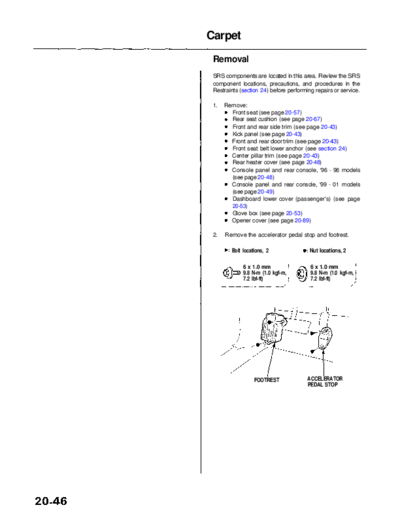

Image preview - the first page of the document
>> Download RL9604S20046A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Carpet
Removal
SRS components are located in this area. Review the SRS
component locations, precautions, and procedures in the
Restraints (section 24) before performing repairs or service.
1. Remove:
Front seat (see page 20-57)
Rear seat cushion (see page 20-67)
Front and rear side trim (see page 20-43)
Kick panel (see page 20-43)
Front and rear door trim (see page 20-43)
Front seat belt lower anchor (see section 24)
Center pillar trim (see page 20-43)
Rear heater cover (see page 20-48)
Console panel and rear console, '96 - 98 models
(see page 20-48)
Console panel and rear console, '99 - 01 models
(see page 20-49)
Dashboard lower cover (passenger's) (see page
20-53)
Glove box (see page 20-53)
Opener cover (see page 20-89)
2. Remove the accelerator pedal stop and footrest.
Bolt locations, 2 Nut locations, 2
6 x 1.0 mm 6 x 1.0 mm
9.8 N-m (1.0 kgf-m, 9.8 N-m (1.0 kgf-m,
7.2 Ibf-ft) 7.2 Ibf-ft)
FOOTREST ACCELERATOR
PEDAL STOP
Main Menu Table of Contents
3. Remove the console lower carpet from each side. 5. Installation is the reverse of the removal procedure.
Cut area in the carpet, then pull it back as shown.
NOTE:
Clip locations Take care not to damage, wrinkle, or twist the
carpet.
Make sure the seat harness is routed correctly.
RIGHT CONSOLE If necessary, replace any damaged clips.
LOWER CARPET Reattach the cut area in the carpet with a wire
tie as follows.
a. Tie a string to the end of the carpet, then slip
the carpet under the heater unit by pulling the
string.
STRING
SLITS
SRS
UNIT
LEFT CONSOLE HOOKS
LOWER CARPET
CARPET
4. Detach the retainers, then remove the carpet.
NOTE: Take care not to damage, wrinkle, or twist b. Reattach with a wire tie.
the carpet.
Clip locations, 4 WIRE TIE
CARPET
FASTENERS
RETAINERS
CARPET
SEAT
HARNESS RETAINERS
SEAT
CUSHION SEAT CUSHION
CLIP CLIP
SEAT
HARNESS
