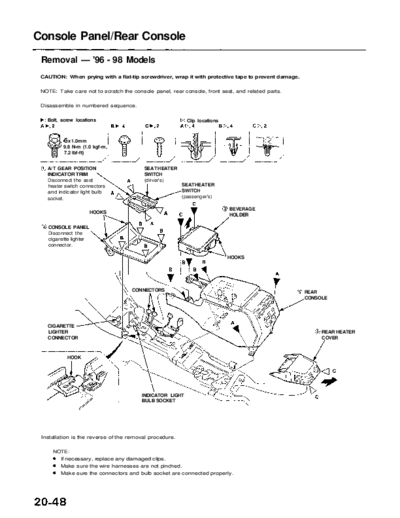

Image preview - the first page of the document
RL9604S20048A


>> Download RL9604S20048A documenatation <<

Text preview - extract from the document
             Main Menu                 Table of Contents


Console Panel/Rear Console
 Removal -- '96 - 98 Models
 CAUTION: When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

 NOTE: Take care not to scratch the console panel, rear console, front seat, and related parts.

 Disassemble in numbered sequence.

   Bolt, screw locations                                     Clip locations



         6 x 1.0 mm
         9.8 N-m (1.0 kgf-m,
         7.2 Ibf-ft)


   A/T GEAR POSITION                     SEAT HEATER
   INDICATOR TRIM                        SWITCH
   Disconnect the seat                   (driver's)
   heater switch connectors                                SEAT HEATER
   and indicator light bulb                                SWITCH
   socket.                                                 (passenger's)

                                                                              BEVERAGE
                       HOOKS
                                                                              HOLDER

   CONSOLE PANEL
   Disconnect the
   cigarette lighter
   connector.

                                                                              HOOKS




                                    CONNECTORS                                                       REAR
                                                                                                     CONSOLE




   CIGARETTE
   LIGHTER                                                                                                REAR HEATER
   CONNECTOR                                                                                              COVER



           HOOK




                                        INDICATOR LIGHT
                                        BULB SOCKET




 Installation is the reverse of the removal procedure.

     NOTE:
        If necessary, replace any damaged clips.
        Make sure the wire harnesses are not pinched.
        Make sure the connectors and bulb socket are connected properly.
