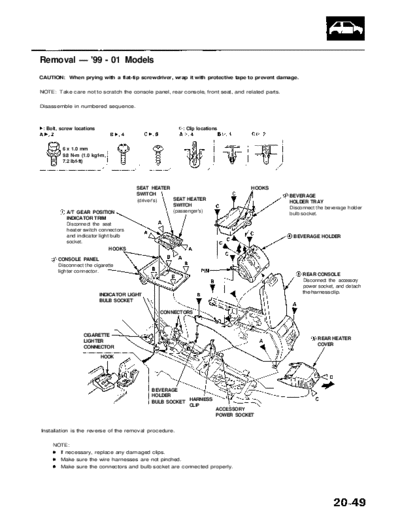

Image preview - the first page of the document
>> Download RL9604S20049A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Removal -- '99 - 01 Models
CAUTION: When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
NOTE: Take care not to scratch the console panel, rear console, front seat, and related parts.
Disassemble in numbered sequence.
Bolt, screw locations Clip locations
6 x 1.0 mm
9.8 N-m (1.0 kgf-m,
7.2 Ibf-ft)
SEAT HEATER HOOKS
SWITCH BEVERAGE
(driver's) SEAT HEATER
HOLDER TRAY
SWITCH
Disconnect the beverage holder
A/T GEAR POSITION (passenger's)
bulb socket.
INDICATOR TRIM
Disconnect the seat
heater switch connectors
and indicator light bulb BEVERAGE HOLDER
socket.
HOOKS
CONSOLE PANEL
Disconnect the cigarette
lighter connector.
REAR CONSOLE
Disconnect the accessory
power socket, and detach
the harness clip.
INDICATOR LIGHT
BULB SOCKET
CONNECTORS
CIGARETTE
REAR HEATER
LIGHTER
COVER
CONNECTOR
HOOK
BEVERAGE
HOLDER
BULB SOCKET HARNESS
CLIP
ACCESSORY
POWER SOCKET
Installation is the reverse of the removal procedure.
NOTE:
If necessary, replace any damaged clips.
Make sure the wire harnesses are not pinched.
Make sure the connectors and bulb socket are connected properly.
