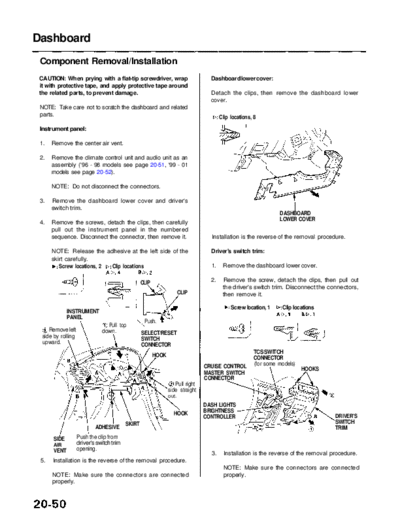

Image preview - the first page of the document
>> Download RL9604S20050A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Dashboard
Component Removal/Installation
CAUTION: When prying with a flat-tip screwdriver, wrap Dashboard lower cover:
it with protective tape, and apply protective tape around
the related parts, to prevent damage. Detach the clips, then remove the dashboard lower
cover.
NOTE: Take care not to scratch the dashboard and related
parts. Clip locations, 8
Instrument panel:
1. Remove the center air vent.
2. Remove the climate control unit and audio unit as an
assembly ('96 - 98 models see page 20-51, '99 - 01
models see page 20-52).
NOTE: Do not disconnect the connectors.
3. Remove the dashboard lower cover and driver's
switch trim.
DASHBOARD
LOWER COVER
4. Remove the screws, detach the clips, then carefully
pull out the instrument panel in the numbered
sequence. Disconnect the connector, then remove it. Installation is the reverse of the removal procedure.
NOTE: Release the adhesive at the left side of the Driver's switch trim:
skirt carefully.
Screw locations, 2 Clip locations 1. Remove the dashboard lower cover.
CLIP 2. Remove the screw, detach the clips, then pull out
the driver's switch trim. Disconnect the connectors,
CLIP then remove it.
Screw location, 1 Clip locations
INSTRUMENT
PANEL
Push.
Pull top
Remove left down.
side by rolling SELECT/RESET
SWITCH
upward. CONNECTOR
TCS SWITCH
HOOK CONNECTOR
(for some models)
CRUISE CONTROL HOOKS
MASTER SWITCH
CONNECTOR
Pull right
side straight
out.
DASH LIGHTS
HOOK BRIGHTNESS
CONTROLLER DRIVER'S
SKIRT SWITCH
ADHESIVE TRIM
SIDE Push the clip from
AIR driver's switch trim
VENT opening.
3. Installation is the reverse of the removal procedure.
5. Installation is the reverse of the removal procedure.
NOTE: Make sure the connectors are connected
NOTE: Make sure the connectors are connected properly.
properly.
Main Menu Table of Contents
Climate control unit and audio unit ('96 - 98 models): Remove the bolts, then pull out the climate control
unit and audio unit as an assembly. Disconnect the
SRS components are located in this area. Review the SRS connectors and antenna leads, then remove it.
component locations, precautions, and procedures in the
Restraints (section 24) before performing repairs or ser- Bolt locations, 4
vice.
6 x 1.0 mm
1. Remove the console panel (see page 20-48). 9.8 N-m
(1.0 kgf-m,
CLIMATE
7.2 Ibf-ft) CONTROL UNIT
2. Remove the center air vent.
CONNECTORS
HAZARD
NOTE: Insert a flat metal plate under the B clips, CLIMATE
WARNING CLOCK
then detach the B clips by prying up. Pull the center CONTROL UNIT
SWITCH CONNECTOR
air vent backward while prying the clips. CONNECTOR
Clip locations
CLIP CLIP
DASHBOARD CLIMATE CONTROL
UPPER BRACKET UNIT
ANTENNA
LEADS
CLIP
AUDIO UNIT
CENTER AIR
VENT AUDIO UNIT
CONNECTORS
FRONT FOG REAR WINDOW
LIGHT SWITCH DEFOGGER SWITCH
PIN CONNECTOR CONNECTOR
5. Installation is the reverse of the removal procedure.
NOTE:
Make sure the connectors and antenna lead are
connected properly.
Enter the anti-theft code for the radio, then enter
PIN the customer's radio station presets.
CLIP
CLIMATE
CONTROL
UNIT
METAL PROTECTIVE
PLATE SEAT
3. Make sure you have the anti-theft code for the
radio, then write down the frequencies for the
radio's preset buttons.
Main Menu Table of Contents
Dashboard
Component Removal/Installation (cont'd)
Climate control unit, audio unit and center air vent ('99 4. Installation is the reverse of the removal procedure.
- 01 models):
NOTE:
SRS components are located in this area. Review the Make sure the connectors and antenna lead are
SRS component locations, precautions, and procedures connected properly.
in the Restraints (section 24) before performing repairs Enter the anti-theft code for the radio, then enter
or service. the customer's radio station presets.
1. Remove:
Console panel (see page 20-49)
Console lower carpet, both sides (see page 20-47)
2. Make sure you have the anti-theft code for the
radio, then write down the frequencies for the
radio's preset buttons.
3. Remove the bolts. Pull out the bottom of the climate
control unit, audio unit, and center air vent as an
assembly, and carefully detach the clip at the center
air vent. Disconnect the connectors and antenna
leads, then remove it.
Bolt locations, 4 Clip locations, 4
CLIP
6 x 1.0 mm
9.8 N-m
(1.0 kgf-m,
7.2 Ibf-ft)
HAZARD
CENTER WARNING CLIMATE
AIR VENT SWITCH CONTROL UNIT
CLIMATE CONNECTOR CONNECTORS
CONTROL AUDIO UNIT
UNIT CONNECTORS
CLOCK
CONNECTOR
AUDIO UNIT
FRONT FOG
LIGHT SWITCH ANTENNA
CONNECTOR LEADS
AUDIO UNIT
CONNECTOR
REAR WINDOW
DEFOGGER SWITCH
CONNECTOR
Main Menu Table of Contents
Glove box: 5. Remove the glove box back cover.
1. Remove the dashboard lower cover.
Screw locations, 3 Clip locations, 4
Clip locations, 3
HOOKS
GLOVE BOX
BACK COVER
Detach the
connector.
DASHBOARD LOWER
COVER
2. Remove the glove box stop from each side. 6. Installation is the reverse of the removal procedure.
Bolt locations, 2 Passenger's dashboard panel:
5 x 0.8 mm 1. Remove the side air vent.
9 N-m (0.9 kgf-m,
7 Ibf-ft)
2. Carefully detach the clips, then pull out the passen-
DAMPER ger's dashboard panel.
CLIP
Clip locations, 3
TRUNK LID
OPENER MAIN
SWITCH
PASSENGER'S
CONNECTOR
DASHBOARD PANEL
CLIPS
DAMPER
CLIP
GLOVE BOX
STOPS
GLOVE BOX
3. Installation is the reverse of the removal procedure.
3. Detach the damper clip while holding the glove box,
and disconnect the connector.
4. Remove the bolts, then remove the glove box.
Main Menu Table of Contents
Dashboard
Component Removal/Installation
(cont'd)
Side air vent (passenger's):
Insert a flat metal plate under the clips, then detach the
clips by prying up. Pull the side air vent backward while
prying the clips.
Side defogger trim:
Carefully pry the side defogger trim at the rear edge,
then remove it.
