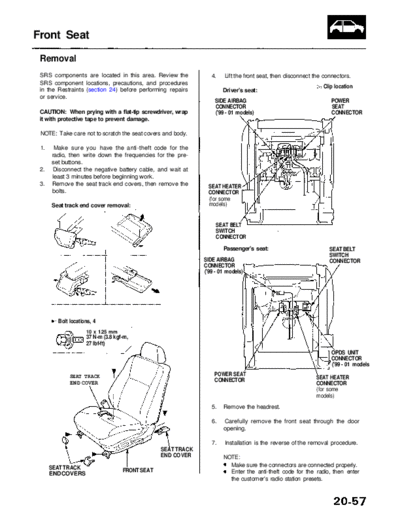

Image preview - the first page of the document
>> Download RL9604S20057A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Front Seat
Removal
SRS components are located in this area. Review the 4. Lift the front seat, then disconnect the connectors.
SRS component locations, precautions, and procedures
Clip location
in the Restraints (section 24) before performing repairs Driver's seat:
or service.
SIDE AIRBAG POWER
CONNECTOR SEAT
CAUTION: When prying with a flat-tip screwdriver, wrap ('99 - 01 models) CONNECTOR
it with protective tape to prevent damage.
NOTE: Take care not to scratch the seat covers and body.
1. Make sure you have the anti-theft code for the
radio, then write down the frequencies for the pre-
set buttons.
2. Disconnect the negative battery cable, and wait at
least 3 minutes before beginning work.
3. Remove the seat track end covers, then remove the SEAT HEATER
bolts. CONNECTOR
(for some
Seat track end cover removal: models)
SEAT BELT
SWITCH
CONNECTOR
Passenger's seat: SEAT BELT
SWITCH
SIDE AIRBAG CONNECTOR
CONNECTOR
('99 - 01 models)
Bolt locations, 4
10 x 1.25 mm
37 N-m (3.8 kgf-m,
27 Ibf-ft)
OPDS UNIT
CONNECTOR
('99 - 01 models
SEAT TRACK POWER SEAT
CONNECTOR SEAT HEATER
END COVER CONNECTOR
(for some
models)
5. Remove the headrest.
6. Carefully remove the front seat through the door
opening.
7. Installation is the reverse of the removal procedure.
SEAT TRACK
END COVER NOTE:
SEAT TRACK Make sure the connectors are connected properly.
FRONT SEAT Enter the anti-theft code for the radio, then enter
END COVERS
the customer's radio station presets.
