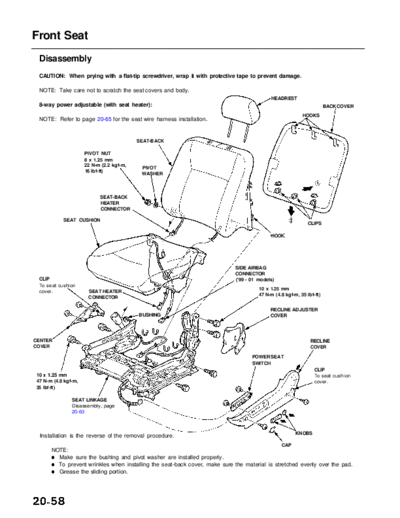

Image preview - the first page of the document
>> Download RL9604S20058A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Front Seat
Disassembly
CAUTION: When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
NOTE: Take care not to scratch the seat covers and body.
HEADREST
8-way power adjustable (with seat heater): BACK COVER
HOOKS
NOTE: Refer to page 20-65 for the seat wire harness installation.
SEAT-BACK
PIVOT NUT
8 x 1.25 mm
22 N-m (2.2 kgf-m, PIVOT
16 Ibf-ft) WASHER
SEAT-BACK
HEATER
CONNECTOR
SEAT CUSHION
CLIPS
HOOK
SIDE AIRBAG
CONNECTOR
CLIP ('99 - 01 models)
To seat cushion
cover. 10 x 1.25 mm
SEAT HEATER
47 N-m (4.8 kgf-m, 35 Ibf-ft)
CONNECTOR
RECLINE ADJUSTER
BUSHING COVER
CENTER RECLINE
COVER COVER
POWER SEAT
SWITCH
CLIP
10 x 1.25 mm To seat cushion
47 N-m (4.8 kgf-m, cover.
35 Ibf-ft)
SEAT LINKAGE
Disassembly, page
20-63
KNOBS
Installation is the reverse of the removal procedure.
CAP
NOTE:
Make sure the bushing and pivot washer are installed properly.
To prevent wrinkles when installing the seat-back cover, make sure the material is stretched evenly over the pad.
Grease the sliding portion.
Main Menu Table of Contents
Disassembly
4-way power adjustable (with seat heater):
HEADREST
NOTE: Refer to page 20-66 for the seat wire harness installation.
BACK COVER
HOOKS
SEAT-BACK
HOOK
SEAT-BACK
HEATER
CONNECTOR
SEAT CUSHION
CLIPS
CLIP
To seat cushion
cover.
RECLINE 10 x 1.25 mm
COVER 47 N-m (4.8 kgf-m,
35 Ibf-ft)
KNOBS PIVOT
WASHER PIVOT NUT
CAP 8 x 1.25 mm
RECLINE 22 N-m (2.2 kgf-m,
ADJUSTER 16 Ibf-ft)
COVER
SEAT HEATER
CONNECTOR
SIDE AIRBAG
CONNECTOR
('99 - 01 models)
OPDS UNIT
CONNECTOR
('99 - 01 models)
BUSHING
POWER SEAT
SWITCH 10 x 1.25 mm
47 N-m (4.8 kgf-m,
35 Ibf-ft)
CENTER
COVER
POWER SEAT
HARNESS
SEAT LINKAGE
Disassembly, page 20-64 CLIP
To seat cushion
Installation is the reverse of the removal procedure. cover.
NOTE:
Make sure the bushing and pivot washer are installed properly.
To prevent wrinkles when installing the seat-back cover, make sure the material is stretched evenly over the pad.
Grease the sliding portion.
