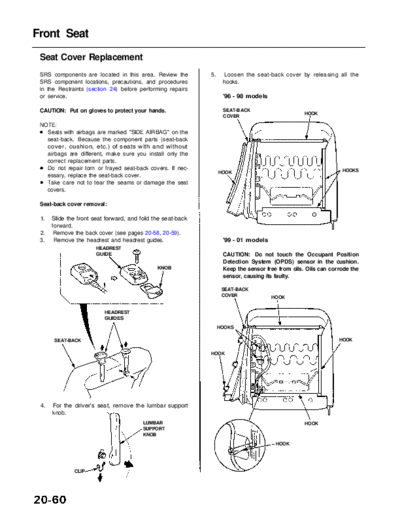

Image preview - the first page of the document

>> Download RL9604S20060A documenatation <<

Text preview - extract from the document

Main Menu Table of Contents

Front Seat
Seat Cover Replacement
SRS components are located in this area. Review the 5. Loosen the seat-back cover by releasing all the
SRS component locations, precautions, and procedures hooks.
in the Restraints (section 24) before performing repairs
or service. '96 - 98 models

CAUTION: Put on gloves to protect your hands. SEAT-BACK
HOOK
COVER
NOTE:
Seats with airbags are marked "SIDE AIRBAG" on the
seat-back. Because the component parts (seat-back
cover, cushion, etc.) of seats with and without
airbags are different, make sure you install only the
correct replacement parts.
Do not repair torn or frayed seat-back covers. If nec- HOOKS
HOOK
essary, replace the seat-back cover.
Take care not to tear the seams or damage the seat
covers.

Seat-back cover removal:

1. Slide the front seat forward, and fold the seat-back
forward.
2. Remove the back cover (see pages 20-58, 20-59).
3. Remove the headrest and headrest guides. '99 - 01 models
HEADREST
GUIDE CAUTION: Do not touch the Occupant Position
Detection System (OPDS) sensor in the cushion.
KNOB Keep the sensor free from oils. Oils can corrode the
sensor, causing its faulty.

SEAT-BACK
COVER HOOK

HEADREST
GUIDES
HOOKS

SEAT-BACK HOOK

HOOK

4. For the driver's seat, remove the lumbar support
knob.
LUMBAR HOOK
SUPPORT
KNOB
HOOK

CLIP
Main Menu Table of Contents

Pull back the edge of the seat-back cover all the way
around, release the clips, and remove the seat-back
cover.

'96 - 98 models

SEAT-BACK
COVER CLIP

'99 - 01 models

CLIP

SEAT-BACK
COVER

7. Installation is the reverse of the removal procedure.

NOTE:
To prevent wrinkles when installing a seat-back
cover, make sure the material is stretched evenly
over the pad before securing the hooks and clips.
Replace the released clips with new ones.
Use only original Acura replacement seat-back
covers ('99 - 01 models).
Main Menu Table of Contents

Front Seat
Seat Cover Replacement (cont'd)
Seat cushion cover removal: 4. Installation is the reverse of the removal procedure.

1. Remove the seat cushion (see pages 20-58, 20-59). NOTE:
To prevent wrinkles when installing a seat cush-
2. Remove the clips and hooks from under the seat ion cover, make sure the material is stretched
cushion, then remove the seat cushion cover with evenly over the pad before securing the clips and
the pad from the seat cushion frame. hooks.
Replace the released clips with new ones.
HOOKS

UPHOLSTERY RING PLIERS
(Commercially available)

SEAT
COVER
HOOKS
HOOKS
NEW CLIP

PAD

WIRE (Pad side)
WIRE
(Cover side)

PAD CLIPS SEAT CUSHION
FRAME

3. Pull back the edge of the seat cushion cover all the
way around, release the clips, and remove the seat
cushion cover.

SEAT CUSHION
CLIP COVER
