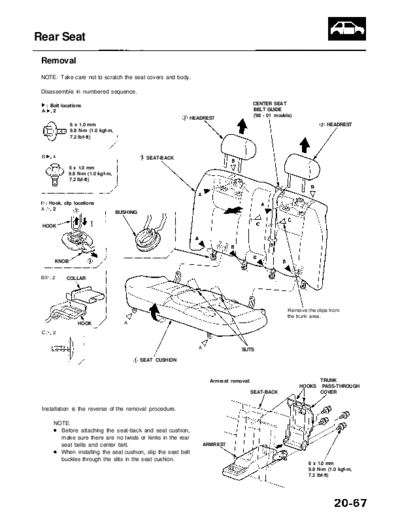

Image preview - the first page of the document
RL9604S20067A


>> Download RL9604S20067A documenatation <<

Text preview - extract from the document
                  Main Menu                     Table of Contents


Rear Seat
 Removal
 NOTE: Take care not to scratch the seat covers and body.

 Disassemble in numbered sequence.

     : Bolt locations                                                                          CENTER SEAT
                                                                                               BELT GUIDE
                                                                    HEADREST                   ('98 - 01 models)
                6 x 1.0 mm                                                                                                    HEADREST
                9.8 N-m (1.0 kgf-m,
                7.2 Ibf-ft)



 B      4                                         SEAT-BACK
                6 x 1.0 mm
                9.8 N-m (1.0 kgf-m,
                7.2 Ibf-ft)



     : Hook, clip locations
 A      2
                                      BUSHING

 HOOK




         KNOB


 B      2     COLLAR




                                                                                                              Remove the clips from
                                                                                                              the trunk area.
                    HOOK                A

 c      2


                                                                      A                 SLITS

                                                SEAT CUSHION



                                                                            Armrest removal:                               TRUNK
                                                                                                                   HOOKS    PASS-THROUGH
                                                                                               SEAT-BACK                   COVER


 Installation is the reverse of the removal procedure.

        NOTE:
          Before attaching the seat-back and seat cushion,
          make sure there are no twists or kinks in the rear
          seat belts and center belt.                                     ARMREST
          When installing the seat cushion, slip the seat belt
          buckles through the slits in the seat cushion.
                                                                                                                      6 x 1.0 mm
                                                                                                                      9.8 N-m (1.0 kgf-m,
                                                                                                                      7.2 Ibf-ft)
