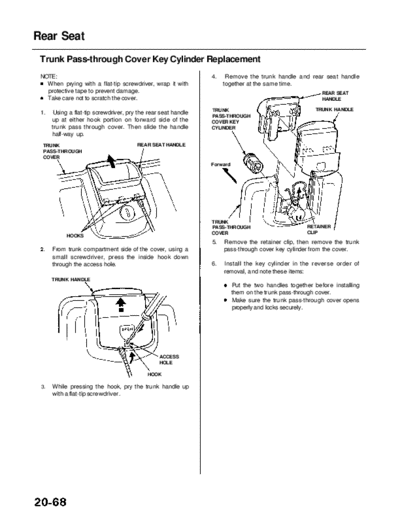

Image preview - the first page of the document



>> Download RL9604S20068A documenatation <<

Text preview - extract from the document

              Main Menu                 Table of Contents


Rear Seat
 Trunk Pass-through Cover Key Cylinder Replacement
 NOTE:                                                         4.    Remove the trunk handle and rear seat handle
   When prying with a flat-tip screwdriver, wrap it with            together at the same time.
   protective tape to prevent damage.                                                                    REAR SEAT
   Take care not to scratch the cover.                                                                   HANDLE

                                                               TRUNK                                   TRUNK HANDLE
 1.   Using a flat-tip screwdriver, pry the rear seat handle
                                                               PASS-THROUGH
      up at either hook portion on forward side of the         COVER KEY
      trunk pass through cover. Then slide the handle          CYLINDER
      half-way up.
 TRUNK                                 REAR SEAT HANDLE
 PASS-THROUGH
 COVER
                                                               Forward




                                                               TRUNK
                                                               PASS-THROUGH                         RETAINER
                                                               COVER                                CLIP
           HOOKS
                                                               5.   Remove the retainer clip, then remove the trunk
      From trunk compartment side of the cover, using a             pass-through cover key cylinder from the cover.
      small screwdriver, press the inside hook down
      through the access hole.                                 6.   Install the key cylinder in the reverse order of
                                                                    removal, and note these items:
      TRUNK HANDLE
                                                                         Put the two handles together before installing
                                                                         them on the trunk pass-through cover.
                                                                         Make sure the trunk pass-through cover opens
                                                                         properly and locks securely.




                                                ACCESS
                                                HOLE

                                           HOOK

 3.   While pressing the hook, pry the trunk handle up
      with a flat-tip screwdriver.
