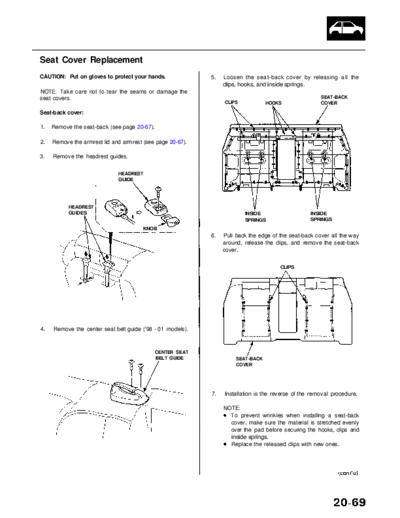

Image preview - the first page of the document



>> Download RL9604S20069A documenatation <<

Text preview - extract from the document

             Main Menu                Table of Contents




Seat Cover Replacement
CAUTION: Put on gloves to protect your hands.               5.   Loosen the seat-back cover by releasing all the
                                                                 clips, hooks, and inside springs.
NOTE: Take care not to tear the seams or damage the
seat covers.                                                                                           SEAT-BACK
                                                                 CLIPS            HOOKS                COVER

Seat-back cover:

1.   Remove the seat-back (see page 20-67).

2.   Remove the armrest lid and armrest (see page 20-67).

3.   Remove the headrest guides.

                              HEADREST
                              GUIDE




           HEADREST
           GUIDES                                                        INSIDE                    INSIDE
                                                                         SPRINGS                   SPRINGS
                                        KNOB
                                                            6.   Pull back the edge of the seat-back cover all the way
                                                                 around, release the clips, and remove the seat-back
                                                                 cover.


                                                                                       CLIPS




4.   Remove the center seat belt guide ('98 - 01 models).


                                              CENTER SEAT
                                              BELT GUIDE              SEAT-BACK
                                                                      COVER




                                                            7.   Installation is the reverse of the removal procedure.

                                                                 NOTE:
                                                                   To prevent wrinkles when installing a seat-back
                                                                   cover, make sure the material is stretched evenly
                                                                   over the pad before securing the hooks, clips and
                                                                   inside springs.
                                                                   Replace the released clips with new ones.
             Main Menu                 Table of Contents


Rear Seat
 Seat Cover Replacement (cont'd)
 Seat cushion cover:                                         4.      Installation is the reverse of the removal procedure.

 1.   Remove the seat cushion (see page 20-67).                      NOTE:
                                                                       To prevent wrinkles when installing a seat cush-
 2.    Loosen the seat cushion cover by releasing all the              ion cover, make sure the material is stretched
      clips.                                                           evenly over the pad before securing the clips.
                                                                       Replace the released clips with new ones.



                                                                                        NEW CLIP
                                                                         SEAT
                                                                         COVER
                                     CLIP

                                                                                                         UPHOLSTERY RING PLIERS
                                                                                                         (Commercially available)




                                                              ROD
                                                                  (Cover side)                     PAD
                                                                                 WIRE
                SEAT CUSHION                                                     (Pad side)
                COVER




 3.   Pull back the edge of the seat cushion cover all the
      way around, release the clips, and remove the seat
      cushion cover.




                          CLIPS




                  SEAT CUSHION
                  COVER
