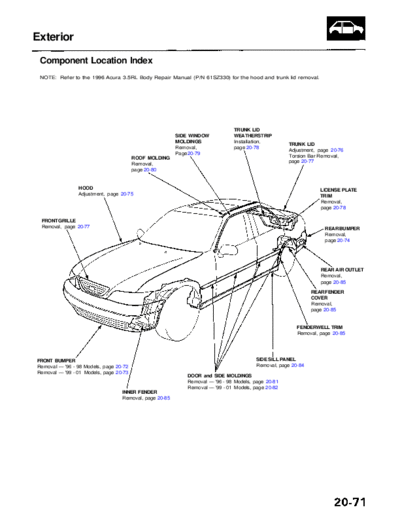

Image preview - the first page of the document
>> Download RL9604S20071A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Exterior
Component Location Index
NOTE: Refer to the 1996 Acura 3.5RL Body Repair Manual (P/N 61SZ330) for the hood and trunk lid removal.
TRUNK LID
SIDE WINDOW WEATHERSTRIP
MOLDINGS Installation, TRUNK LID
Removal, page 20-78 Adjustment, page 20-76
Page 20-79
ROOF MOLDING Torsion Bar Removal,
Removal, page 20-77
page 20-80
HOOD LICENSE PLATE
Adjustment, page 20-75 TRIM
Removal,
page 20-78
FRONT GRILLE
Removal, page 20-77 REAR BUMPER
Removal,
page 20-74
REAR AIR OUTLET
Removal,
page 20-85
REAR FENDER
COVER
Removal,
page 20-85
FENDERWELL TRIM
Removal, page 20-85
FRONT BUMPER SIDE SILL PANEL
Removal -- '96 - 98 Models, page 20-72 Removal, page 20-84
Removal -- '99 - 01 Models, page 20-73
DOOR and SIDE MOLDINGS
Removal -- '96 - 98 Models, page 20-81
Removal -- '99 - 01 Models, page 20-82
INNER FENDER
Removal, page 20-85
