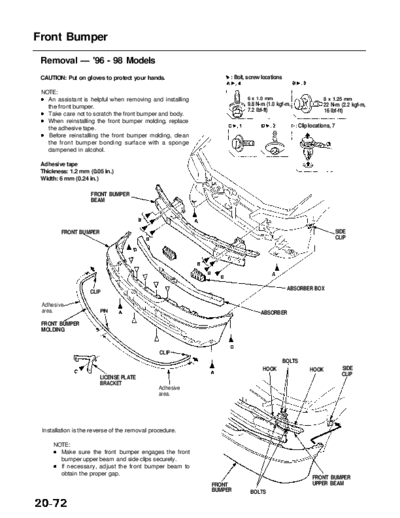

Image preview - the first page of the document



>> Download RL9604S20072A documenatation <<

Text preview - extract from the document

            Main Menu                   Table of Contents


Front Bumper

 Removal -- '96 - 98 Models
 CAUTION: Put on gloves to protect your hands.                   : Bolt, screw locations

 NOTE:
   An assistant is helpful when removing and installing                 6 x 1.0 mm                            8 x 1.25 mm
   the front bumper.                                                    9.8 N-m (1.0 kgf-m,                   22 N-m (2.2 kgf-m,
                                                                        7.2 Ibf-ft)                           16 Ibf-ft)
   Take care not to scratch the front bumper and body.
   When reinstalling the front bumper molding, replace
   the adhesive tape.                                                                              Clip locations, 7
   Before reinstalling the front bumper molding, clean
   the front bumper bonding surface with a sponge
   dampened in alcohol.

 Adhesive tape
 Thickness: 1.2 mm (0.05 in.)
 Width: 6 mm (0.24 in.)

                    FRONT BUMPER
                    BEAM




        FRONT BUMPER                                                                                                   SIDE
                                                                                                                       CLIP




                                                                                            ABSORBER BOX
                    CLIP

 Adhesive
 area.                  PIN                                                   ABSORBER
 FRONT BUMPER
 MOLDING


                                                 CLIP
                                                                                           BOLTS
                                                                               HOOK                     HOOK             SIDE
                                                                                                                         CLIP
                        LICENSE PLATE
                        BRACKET
                                                Adhesive
                                                area.




 Installation is the reverse of the removal procedure.

     NOTE:
       Make sure the front bumper engages the front
       bumper upper beam and side clips securely.
       If necessary, adjust the front bumper beam to
       obtain the proper gap.
                                                                                                         FRONT BUMPER
                                                            FRONT                                        UPPER BEAM
                                                            BUMPER       BOLTS
