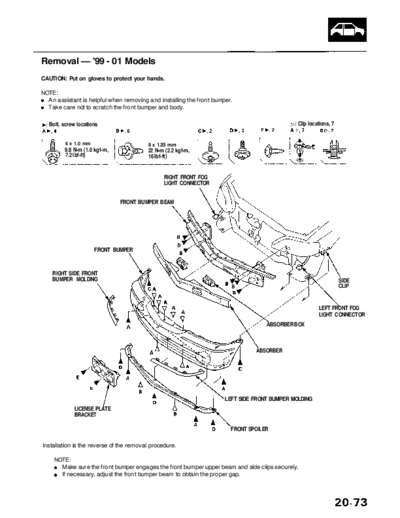

Image preview - the first page of the document



>> Download RL9604S20073A documenatation <<

Text preview - extract from the document

              Main Menu               Table of Contents




Removal -- '99 - 01 Models
CAUTION: Put on gloves to protect your hands.

NOTE:
  An assistant is helpful when removing and installing the front bumper.
  Take care not to scratch the front bumper and body.


   Bolt, screw locations                                                                    : Clip locations, 7


         6 x 1.0 mm                      8 x 1.25 mm
         9.8 N-m (1.0 kgf-m,             22 N-m (2.2 kgf-m,
         7.2 Ibf-ft)                     16 Ibf-ft)


                                                RIGHT FRONT FOG
                                                LIGHT CONNECTOR


                               FRONT BUMPER BEAM




                      FRONT BUMPER



    RIGHT SIDE FRONT
    BUMPER MOLDING                                                                                                SIDE
                                                                                                                  CLIP


                                                                                                       LEFT FRONT FOG
                                                                                                       LIGHT CONNECTOR
                                                                                   ABSORBER BOX



                                                                               ABSORBER




                                                                     LEFT SIDE FRONT BUMPER MOLDING
             LICENSE PLATE
             BRACKET

                                                                       FRONT SPOILER

Installation is the reverse of the removal procedure.

     NOTE:
       Make sure the front bumper engages the front bumper upper beam and side clips securely.
       If necessary, adjust the front bumper beam to obtain the proper gap.
