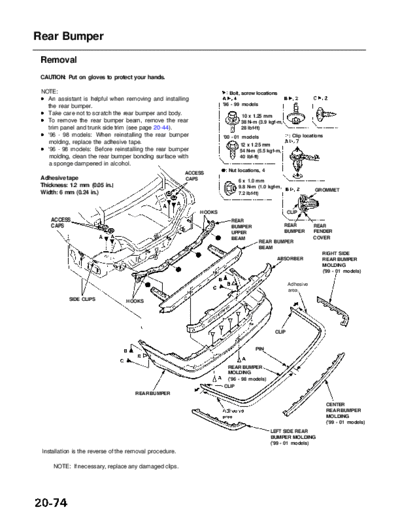

Image preview - the first page of the document



>> Download RL9604S20074A documenatation <<

Text preview - extract from the document

             Main Menu                Table of Contents


Rear Bumper

 Removal
 CAUTION: Put on gloves to protect your hands.

 NOTE:                                                                  Bolt, screw locations
   An assistant is helpful when removing and installing
   the rear bumper.                                                   '96 - 99 models
   Take care not to scratch the rear bumper and body.                         10 x 1.25 mm
   To remove the rear bumper beam, remove the rear                            38 N-m (3.9 kgf-m,
   trim panel and trunk side trim (see page 20-44).                           28 Ibf-ft)
   '96 - 98 models: When reinstalling the rear bumper                 '00 - 01 models               : Clip locations
   molding, replace the adhesive tape.                                       12 x 1.25 mm
   '96 - 98 models: Before reinstalling the rear bumper                      54 N-m (5.5 kgf-m,
   molding, clean the rear bumper bonding surface with                       40 Ibf-ft)
   a sponge dampened in alcohol.
                                                                        Nut locations, 4
                                                          ACCESS
 Adhesive tape                                            CAPS               6 x 1.0 mm
 Thickness: 1.2 mm (0.05 in.                                                 9.8 N-m (1.0 kgf-m,
 Width: 6 mm (0.24 in.)                                                                                         GROMMET
                                                                             7.2 Ibf-ft)


                                                              HOOKS                                 CLIP
    ACCESS                                                               REAR
    CAPS                                                                 BUMPER                    REAR        REAR
                                                                         UPPER                     BUMPER      FENDER
                                                                         BEAM                                  COVER
                                                                                        REAR BUMPER
                                                                                        BEAM
                                                                                                                   RIGHT SIDE
                                                                                              ABSORBER             REAR BUMPER
                                                                                                                   MOLDING
                                                                                                                   ('99 - 01 models)

                                                                                                    Adhesive
                                                                                                    area.
           SIDE CLIPS             HOOKS




                                                                                             CLIP


                                                                                    PIN


                                                                        REAR BUMPER
                                                                        MOLDING
                                                                        ('96 - 98 models)
                                                                      CLIP
                                     REAR BUMPER

                                                                                                                       CENTER
                                                                                                                       REAR BUMPER
                                                                                                                       MOLDING
                                                                                                                       ('99 - 01 models)
                                                                                            LEFT SIDE REAR
                                                                                            BUMPER MOLDING
                                                                                            ('99 - 01 models)
 Installation is the reverse of the removal procedure.

     NOTE: If necessary, replace any damaged clips.
