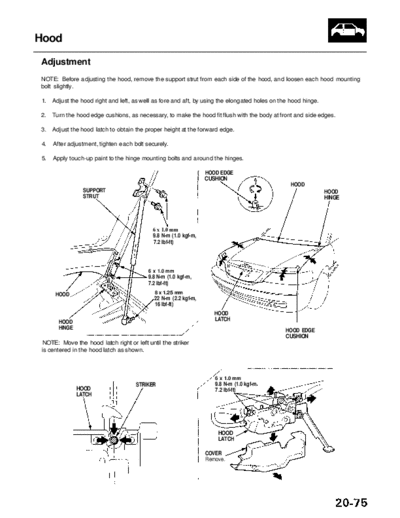

Image preview - the first page of the document
>> Download RL9604S20075A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Hood
Adjustment
NOTE: Before adjusting the hood, remove the support strut from each side of the hood, and loosen each hood mounting
bolt slightly.
1. Adjust the hood right and left, as well as fore and aft, by using the elongated holes on the hood hinge.
2. Turn the hood edge cushions, as necessary, to make the hood fit flush with the body at front and side edges.
3. Adjust the hood latch to obtain the proper height at the forward edge.
4. After adjustment, tighten each bolt securely.
5. Apply touch-up paint to the hinge mounting bolts and around the hinges.
{ HOOD EDGE
I CUSHION
HOOD
SUPPORT HOOD
STRUT HINGE
6 x 1.0 mm
9.8 N-m (1.0 kgf-m,
7.2 Ibf-ft)
6 x 1.0 mm
9.8 N-m (1.0 kgf-m,
7.2 Ibf-ft)
HOOD 8 x 1.25 mm
22 N-m (2.2 kgf-m,
16 Ibf-ft)
HOOD
HOOD LATCH
HINGE HOOD EDGE
CUSHION
NOTE: Move the hood latch right or left until the striker
is centered in the hood latch as shown.
6 x 1.0 mm
STRIKER 9.8 N-m (1.0 kgf-m
HOOD 7.2 Ibf-ft)
LATCH
HOOD
LATCH
COVER
Remove.
