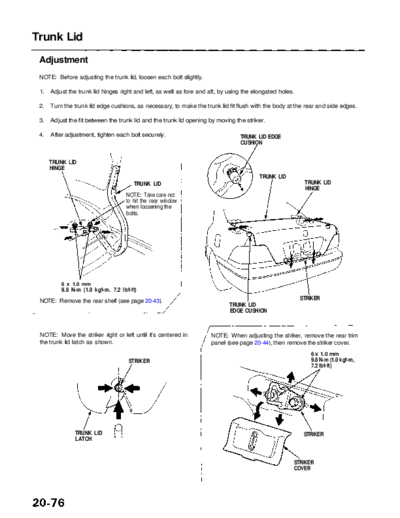

Image preview - the first page of the document



>> Download RL9604S20076A documenatation <<

Text preview - extract from the document

              Main Menu                     Table of Contents


Trunk Lid

 Adjustment
 NOTE: Before adjusting the trunk lid, loosen each bolt slightly.

 1.   Adjust the trunk lid hinges right and left, as well as fore and aft, by using the elongated holes.

 2.   Turn the trunk lid edge cushions, as necessary, to make the trunk lid fit flush with the body at the rear and side edges.

 3.   Adjust the fit between the trunk lid and the trunk lid opening by moving the striker.

 4.   After adjustment, tighten each bolt securely.                               TRUNK LID EDGE
                                                                                  CUSHION


      TRUNK LID
      HINGE
                                                                                          TRUNK LID
                                       TRUNK LID                                                            TRUNK LID
                                                                                                            HINGE
                                    NOTE: Take care not
                                    to hit the rear window
                                    when loosening the
                                    bolts.




          6 x 1.0 mm
          9.8 N-m (1.0 kgf-m. 7.2 Ibf-ft)
 NOTE: Remove the rear shelf (see page 20-43).                                                             STRIKER
                                                                              TRUNK LID
                                                                              EDGE CUSHION



 NOTE: Move the striker right or left until it's centered in          NOTE: When adjusting the striker, remove the rear trim
 the trunk lid latch as shown.                                        panel (see page 20-44), then remove the striker cover.
                                                                                                              6 x 1.0 mm
                                     STRIKER                                                                  9.8 N-m (1.0 kgf-m,
                                                                                                              7.2 Ibf-ft)




               TRUNK LID                                                                                    STRIKER
               LATCH



                                                                                                       STRIKER
                                                                                                       COVER
