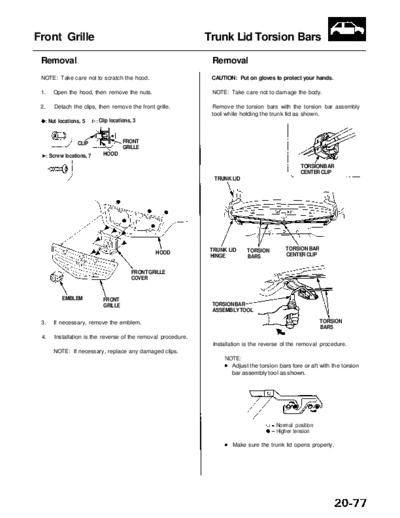

                 Main Menu                     Table of Contents


Front Grille                                                       Trunk Lid Torsion Bars

 Removal                                                            Removal
 NOTE: Take care not to scratch the hood.                           CAUTION: Put on gloves to protect your hands.

 1.     Open the hood, then remove the nuts.                        NOTE: Take care not to damage the body.

 2.     Detach the clips, then remove the front grille.             Remove the torsion bars with the torsion bar assembly
                                                                    tool while holding the trunk lid as shown.
      Nut locations, 5     Clip locations, 3



                  CLIP                FRONT
                                      GRILLE
      Screw locations, 7     HOOD

                                                                                                       TORSION BAR
                                                                                                       CENTER CLIP
                                                                     TRUNK LID




                                                                    TRUNK LID     TORSION        TORSION BAR
                                                     HOOD                                        CENTER CLIP
                                                                    HINGE         BARS

                                         FRONT GRILLE
                                         COVER


            EMBLEM           FRONT
                             GRILLE                                 TORSION BAR
                                                                    ASSEMBLY TOOL

 3.     If necessary, remove the emblem.                                                                       TORSION
                                                                                                               BARS
 4.     Installation is the reverse of the removal procedure.
                                                                    Installation is the reverse of the removal procedure.
        NOTE: If necessary, replace any damaged clips.
                                                                         NOTE:
                                                                           Adjust the torsion bars fore or aft with the torsion
                                                                           bar assembly tool as shown.




                                                                                             Normal position
                                                                                             Higher tension

                                                                            Make sure the trunk lid opens properly.
