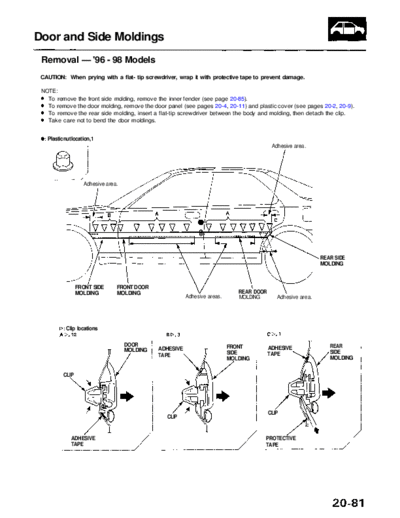

Image preview - the first page of the document
>> Download RL9604S20081A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Door and Side Moldings
Removal -- '96 - 98 Models
CAUTION: When prying with a flat- tip screwdriver, wrap it with protective tape to prevent damage.
NOTE:
To remove the front side molding, remove the inner fender (see page 20-85).
To remove the door molding, remove the door panel (see pages 20-4, 20-11) and plastic cover (see pages 20-2, 20-9).
To remove the rear side molding, insert a flat-tip screwdriver between the body and molding, then detach the clip.
Take care not to bend the door moldings.
Plastic nut location, 1
Adhesive area.
Adhesive area.
REAR SIDE
MOLDING
FRONT SIDE FRONT DOOR
MOLDING MOLDING REAR DOOR
Adhesive areas. MOLDING Adhesive area.
Clip locations
DOOR FRONT REAR
MOLDING ADHESIVE ADHESIVE
SIDE TAPE SIDE
TAPE
MOLDING MOLDING
CLIP
CLIP
CLIP
ADHESIVE PROTECTIVE
TAPE TAPE
