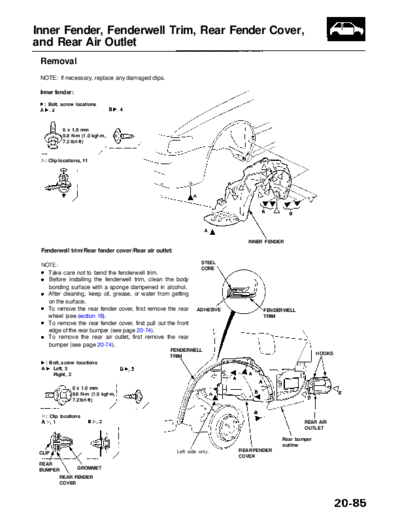

RL9604S20085A


>> Download RL9604S20085A documenatation <<

Text preview - extract from the document
                 Main Menu               Table of Contents

Inner Fender, Fenderwell Trim, Rear Fender Cover,
and Rear Air Outlet
 Removal
 NOTE: If necessary, replace any damaged clips

 Inner fender:

   : Bolt, screw locations




           6 x 1.0 mm
           9.8 N-m (1.0 kgf-m,
           7.2 Ibf-ft)


   : Clip locations, 11




                                                                              INNER FENDER
 Fenderwell trim/Rear fender cover/Rear air outlet:
                                                                  STEEL
 NOTE:
                                                                  CORE
   Take care not to bend the fenderwell trim.
   Before installing the fenderwell trim, clean the body
   bonding surface with a sponge dampened in alcohol.
   After cleaning, keep oil, grease, or water from getting
   on the surface.
   To remove the rear fender cover, first remove the rear       ADHESIVE           FENDERWELL
   wheel (see section 18).                                                         TRIM
   To remove the rear fender cover, first pull out the front
   edge of the rear bumper (see page 20-74).
   To remove the rear air outlet, first remove the rear
   bumper (see page 20-74).
                                                    FENDERWELL
                                                    TRIM                                               HOOKS
   : Bolt, screw locations
      Left, 3
      Right, 2

               6 x 1.0 mm
               9.8 N-m (1.0 kgf-m,
               7.2 Ibf-ft)


   : Clip locations
                                                                                                 REAR AIR
                                                                                                 OUTLET

                                                                                         Rear bumper
                                                                                         outline
                                                       Left side only.     REAR FENDER
 CLIP
                                                                           COVER
 REAR
 BUMPER          GROMMET
          REAR FENDER
          COVER
