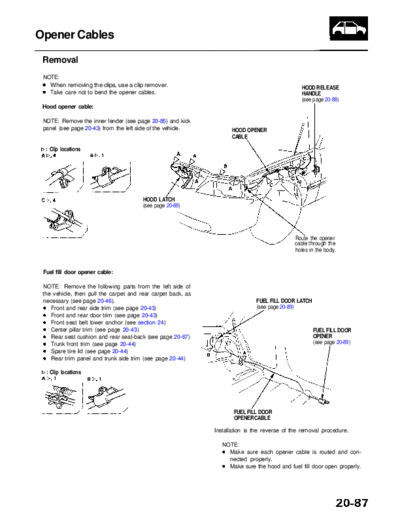

RL9604S20087A


>> Download RL9604S20087A documenatation <<

Text preview - extract from the document
                Main Menu               Table of Contents


Opener Cables

 Removal
 NOTE:
   When removing the clips, use a clip remover.
                                                                                                HOOD RELEASE
   Take care not to bend the opener cables.                                                     HANDLE
                                                                                                (see page 20-88)
 Hood opener cable:

 NOTE: Remove the inner fender (see page 20-85) and kick
 panel (see page 20-43) from the left side of the vehicle.          HOOD OPENER
                                                                    CABLE

  : Clip locations




                                        HOOD LATCH
                                        (see page 20-88)




                                                                                             Route the opener
                                                                                             cable through the
                                                                                             holes in the body.


 Fuel fill door opener cable:

 NOTE: Remove the following parts from the left side of
 the vehicle, then pull the carpet and rear carpet back, as
 necessary (see page 20-46).                                                  FUEL FILL DOOR LATCH
    Front and rear side trim (see page 20-43)                                 (see page 20-89)
    Front and rear door trim (see page 20-43)
    Front seat belt lower anchor (see section 24)
    Center pillar trim (see page 20-43)                                                              FUEL FILL DOOR
    Rear seat cushion and rear seat-back (see page 20-67)                                            OPENER
    Trunk front trim (see page 20-44)                                                                (see page 20-89)
    Spare tire lid (see page 20-44)
    Rear trim panel and trunk side trim (see page 20-44)

  : Clip locations




                                                                     FUEL FILL DOOR
                                                                     OPENER CABLE

                                                              Installation is the reverse of the removal procedure.

                                                                 NOTE:
                                                                   Make sure each opener cable is routed and con-
                                                                   nected properly.
                                                                   Make sure the hood and fuel fill door open properly.
