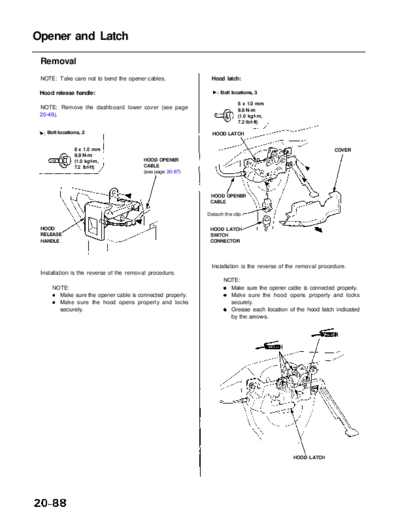

Image preview - the first page of the document



>> Download RL9604S20088A documenatation <<

Text preview - extract from the document

              Main Menu                Table of Contents


Opener and Latch

 Removal
 NOTE: Take care not to bend the opener cables.              Hood latch:

 Hood release handle:                                           : Bolt locations, 3

                                                                         6 x 1.0 mm
 NOTE: Remove the dashboard lower cover (see page                        9.8 N-m
 20-49).                                                                 (1.0 kgf-m,
                                                                         7.2 Ibf-ft)

   Bolt locations, 2                                          HOOD LATCH


               6 x 1.0 mm                                                                                     COVER
               9.8 N-m
               (1.0 kgf-m,               HOOD OPENER
               7.2 Ibf-ft)               CABLE
                                         (see page 20-87)




                                                             HOOD OPENER
                                                             CABLE

                                                            Detach the clip.


 HOOD                                                        HOOD LATCH
 RELEASE                                                     SWITCH
 HANDLE                                                      CONNECTOR




                                                              Installation is the reverse of the removal procedure.
 Installation is the reverse of the removal procedure.
                                                                   NOTE:
     NOTE:                                                           Make sure the opener cable is connected properly.
       Make sure the opener cable is connected properly.             Make sure the hood opens properly and locks
       Make sure the hood opens properly and locks                   securely.
       securely.                                                     Grease each location of the hood latch indicated
                                                                     by the arrows.




                                                                                              HOOD LATCH
                    Main Menu                 Table of Contents




 Fuel fill door opener:                                           Fuel fill door latch:

     Bolt, screw locations                                        NOTE: Remove the following parts.
                                                                    Rear trim panel (see page 20-44)
               6 x 1.0 mm                                           Rear edge of the trunk side trim (left side, see page
               9.8 N-m                                              20-44)
               (1.0 kgf-m,
               7.2 Ibf-ft)                                          : Bolt locations, 2
                                                                                 6 x 1.0 mm
                                                                                 9.8 N-m (1.0 kgf-m,
                                                                                 7.2 Ibf-ft)            FUEL FILL DOOR LATCH
      OPENER COVER                    HOOK
      Slide and remove the
      opener cover while
      pulling it up.



              HOOK

       FUEL FILL DOOR
       OPENER

                                                   KNOB

                                                                        FUEL FILL DOOR
                                                                        After installing check for
                                                                        a flush fit with the body.




                                FUEL FILL DOOR
                                OPENER CABLE
To fuel fill door               (see page 20-87)
latch.                                                                                         FUEL FILL DOOR OPENER
                                                                                               CABLE
                                                                                               (see page 20-87)
 Installation is the reverse of the removal procedure.                      FUEL FILL DOOR LATCH
                                                                            Remove the fuel fill door latch
                                                                            by turning it 90
