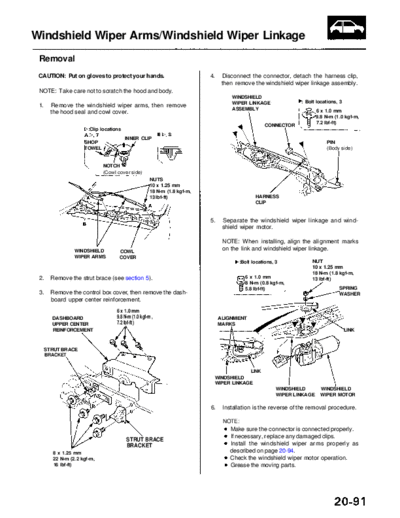

Image preview - the first page of the document
>> Download RL9604S20091A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Windshield Wiper Arms/Windshield Wiper Linkage
Removal
CAUTION: Put on gloves to protect your hands. 4. Disconnect the connector, detach the harness clip,
then remove the windshield wiper linkage assembly.
NOTE: Take care not to scratch the hood and body.
WINDSHIELD
WIPER LINKAGE : Bolt locations, 3
1. Remove the windshield wiper arms, then remove
ASSEMBLY 6 x 1.0 mm
the hood seal and cowl cover.
9.8 N-m (1.0 kgf-m,
CONNECTOR 7.2 Ibf-ft)
Clip locations
INNER CLIP
SHOP PIN
TOWEL (Body side)
NOTCH
(Cowl cover side)
NUTS
10 x 1.25 mm
18 N-m (1.8 kgf-m,
13 Ibf-ft) HARNESS
CLIP
5. Separate the windshield wiper linkage and wind-
shield wiper motor.
NOTE: When installing, align the alignment marks
WINDSHIELD COWL on the link and windshield wiper linkage.
WIPER ARMS COVER
Bolt locations, 3 NUT
10 x 1.25 mm
18 N-m (1.8 kgf-m,
2. Remove the strut brace (see section 5). 6 x 1.0 mm 13 Ibf-ft)
8 N-m (0.8 kgf-m,
5.8 Ibf-ft) SPRING
3. Remove the control box cover, then remove the dash- WASHER
board upper center reinforcement.
6 x 1.0 mm
DASHBOARD 9.8 N-m (1.0 kgf-m , ALIGNMENT
UPPER CENTER 7.2 Ibf-ft ) MARKS
REINFORCEMENT LINK
STRUT BRACE
BRACKET
LINK
WINDSHIELD
WIPER LINKAGE
WINDSHIELD WINDSHIELD
WIPER LINKAGE WIPER MOTOR
6. Installation is the reverse of the removal procedure.
NOTE:
Make sure the connector is connected properly.
If necessary, replace any damaged clips.
STRUT BRACE
BRACKET Install the windshield wiper arms properly as
8 x 1.25 mm described on page 20-94.
22 N-m (2.2 kgf-m, Check the windshield wiper motor operation.
16 Ibf-ft) Grease the moving parts.
