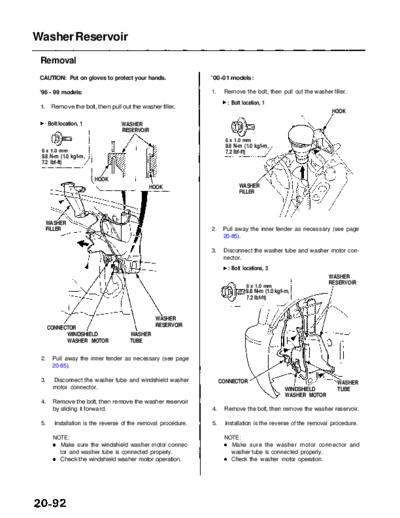

Image preview - the first page of the document



>> Download RL9604S20092A documenatation <<

Text preview - extract from the document

                 Main Menu               Table of Contents


Washer Reservoir
 Removal
 CAUTION: Put on gloves to protect your hands.                  '00-01 models:

 '96 - 99 models:                                               1.    Remove the bolt, then pull out the washer filler.
                                                                       : Bolt location, 1
 1.    Remove the bolt, then pull out the washer filler.
                                                                                                                 HOOK

      Bolt location, 1            WASHER
                                  RESERVOIR
                                                                       6 x 1.0 mm
                                                                       9.8 N-m (1.0 kgf-m,
 6 x 1.0 mm                                                            7.2 Ibf-ft)
 9.8 N-m (1.0 kgf-m,
 7.2 Ibf-ft)

                         HOOK
                                              HOOK                           WASHER
                                                                             FILLER




      WASHER
      FILLER                                                    2.    Pull away the inner fender as necessary (see page
                                                                      20-85).

                                                                3.    Disconnect the washer tube and washer motor con-
                                                                      nector.
                                                                        : Bolt locations, 3
                                                                                                                WASHER
                                                                                6 x 1.0 mm
                                                                                                                RESERVOIR
                                                                                9.8 N-m (1.0 kgf-m,
                                                                                7.2 Ibf-ft)


                                                WASHER
      CONNECTOR                                 RESERVOIR
            WINDSHIELD                WASHER
            WASHER MOTOR              TUBE


 2.     Pull away the inner fender as necessary (see page
        20-85).

 3.     Disconnect the washer tube and windshield washer             CONNECTOR                                     WASHER
        motor connector.                                                                         WINDSHIELD        TUBE
                                                                                                 WASHER MOTOR
 4.     Remove the bolt, then remove the washer reservoir
        by sliding it forward.                                  4.    Remove the bolt, then remove the washer reservoir.

 5.     Installation is the reverse of the removal procedure.   5.    Installation is the reverse of the removal procedure.

        NOTE:                                                         NOTE:
          Make sure the windshield washer motor connec-                 Make sure the washer motor connector and
          tor and washer tube is connected properly.                    washer tube is connected properly.
          Check the windshield washer motor operation.                  Check the washer motor operation.
