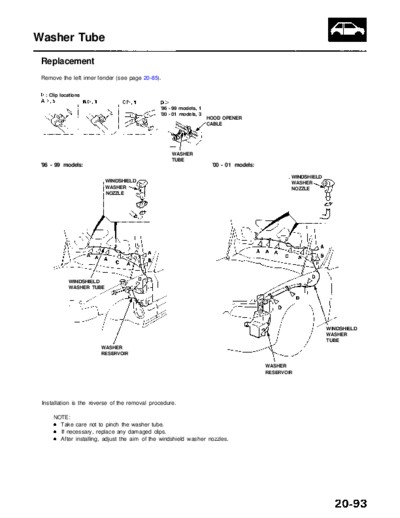

Image preview - the first page of the document
RL9604S20093A


>> Download RL9604S20093A documenatation <<

Text preview - extract from the document
               Main Menu                Table of Contents


Washer Tube
 Replacement
 Remove the left inner fender (see page 20-85).


  : Clip locations

                                               '96 - 99 models, 1
                                               '00 - 01 models, 3
                                                                    HOOD OPENER
                                                                    CABLE




                                                    WASHER
                                                    TUBE
 '96 - 99 models:                                                    '00 - 01 models:

                                                                                                WINDSHIELD
                           WINDSHIELD                                                           WASHER
                           WASHER                                                               NOZZLE
                           NOZZLE




            WINDSHIELD
            WASHER TUBE




                                                                                                             WINDSHIELD
                                                                                                             WASHER
                                                                                                             TUBE
                        WASHER
                        RESERVOIR

                                                                                        WASHER
                                                                                        RESERVOIR




 Installation is the reverse of the removal procedure.

     NOTE:
       Take care not to pinch the washer tube.
       If necessary, replace any damaged clips.
       After installing, adjust the aim of the windshield washer nozzles.
