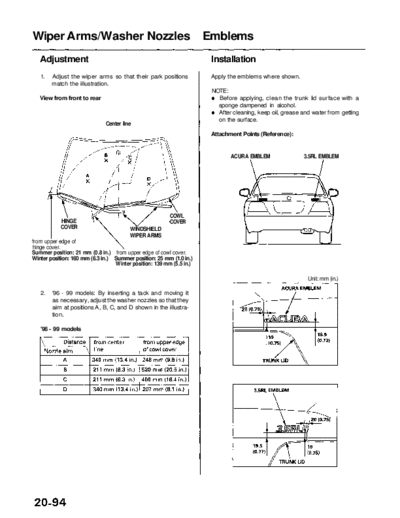

Image preview - the first page of the document
>> Download RL9604S20094A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Wiper Arms/Washer Nozzles Emblems
Adjustment Installation
1. Adjust the wiper arms so that their park positions Apply the emblems where shown.
match the illustration.
NOTE:
View from front to rear Before applying, clean the trunk lid surface with a
sponge dampened in alcohol.
After cleaning, keep oil, grease and water from getting
on the surface.
Center line
Attachment Points (Reference):
ACURA EMBLEM 3.5RL EMBLEM
COWL
HINGE COVER
COVER WINDSHIELD
WIPER ARMS
from upper edge of
hinge cover.
Summer position: 21 mm (0.8 in.) from upper edge of cowl cover.
Winter position: 160 mm (6.3 in.) Summer position: 25 mm (1.0 in.)
Winter position: 139 mm (5.5 in.)
Unit: mm (in.)
2. '96 - 99 models: By inserting a tack and moving it
as necessary, adjust the washer nozzles so that they
aim at positions A, B, C, and D shown in the illustra-
tion.
'96 - 99 models
