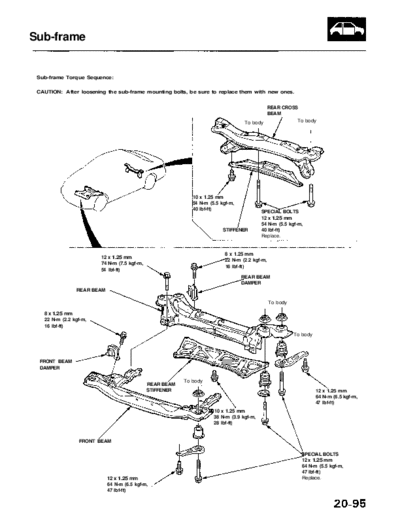

Image preview - the first page of the document
>> Download RL9604S20095A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Sub-frame
Sub-frame Torque Sequence:
CAUTION: After loosening the sub-frame mounting bolts, be sure to replace them with new ones.
REAR CROSS
BEAM
To body To body
10 x 1.25 mm
54 N-m (5.5 kgf-m,
40 Ibf-ft)
SPECIAL BOLTS
12 x 1.25 mm
54 N-m (5.5 kgf-m,
STIFFENER 40 Ibf-ft)
Replace.
8 x 1.25 mm
12 x 1.25 mm
22 N-m (2.2 kgf-m,
74 N-m (7.5 kgf-m,
16 Ibf-ft)
54 Ibf-ft)
REAR BEAM
DAMPER
REAR BEAM
To body
8 x 1.25 mm
22 N-m (2.2 kgf-m,
16 Ibf-ft)
To body
FRONT BEAM
DAMPER
To body
REAR BEAM
STIFFENER 12 x 1.25 mm
64 N-m (6.5 kgf-m,
47 Ibf-ft)
10 x 1.25 mm
38 N-m (3.9 kgf-m,
28 Ibf-ft)
FRONT BEAM
SPECIAL BOLTS
12 x 1.25 mm
64 N-m (5.5 kgf-m,
47 Ibf-ft)
12 x 1.25 mm Replace.
64 N-m (6.5 kgf-m,
47 Ibf-ft)
