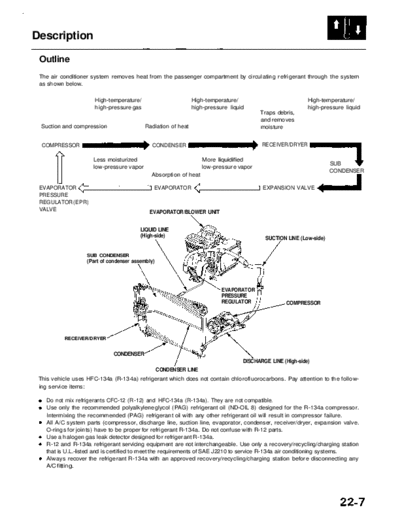

Image preview - the first page of the document



>> Download RL9604S22007A documenatation <<

Text preview - extract from the document

              Main Menu                  Table of Contents


Description

 Outline
 The air conditioner system removes heat from the passenger compartment by circulating refrigerant through the system
 as shown below.


                      High-temperature/                        High-temperature/                           High-temperature/
                      high-pressure gas                        high-pressure liquid                        high-pressure liquid
                                                                                        Traps debris,
                                                                                        and removes
 Suction and compression                   Radiation of heat                            moisture


  COMPRESSOR                                  CONDENSER                                  RECEIVER/DRYER

                     Less moisturized                              More liquidified
                                                                                                                    SUB
                     low-pressure vapor                            low-pressure vapor
                                                                                                                    CONDENSER
                                             Absorption of heat

 EVAPORATOR                                   EVAPORATOR                                 EXPANSION VALVE
 PRESSURE
 REGULATOR (EPR)
 VALVE
                                             EVAPORATOR/BLOWER UNIT


                                         LIQUID LINE
                                         (High-side)                                      SUCTION LINE (Low-side)


                   SUB CONDENSER
                   (Part of condenser assembly)




                                                                          EVAPORATOR
                                                                          PRESSURE
                                                                          REGULATOR               COMPRESSOR




          RECEIVER/DRYER


                              CONDENSER
                                                                                  DISCHARGE LINE (High-side)
                                                  CONDENSER LINE
 This vehicle uses HFC-134a (R-134a) refrigerant which does not contain chlorofluorocarbons. Pay attention to the follow-
 ing service items:

   Do not mix refrigerants CFC-12 (R-12) and HFC-134a (R-134a). They are not compatible.
   Use only the recommended polyalkyleneglycol (PAG) refrigerant oil (ND-OIL 8) designed for the R-134a compressor.
   Intermixing the recommended (PAG) refrigerant oil with any other refrigerant oil will result in compressor failure.
   All A/C system parts (compressor, discharge line, suction line, evaporator, condenser, receiver/dryer, expansion valve.
   O-rings for joints) have to be proper for refrigerant R-134a. Do not confuse with R-12 parts.
   Use a halogen gas leak detector designed for refrigerant R-134a.
   R-12 and R-134a refrigerant servicing equipment are not interchangeable. Use only a recovery/recycling/charging station
   that is U.L.-listed and is certified to meet the requirements of SAE J2210 to service R-134a air conditioning systems.
   Always recover the refrigerant R-134a with an approved recovery/recycling/charging station before disconnecting any
   A/C fitting.
