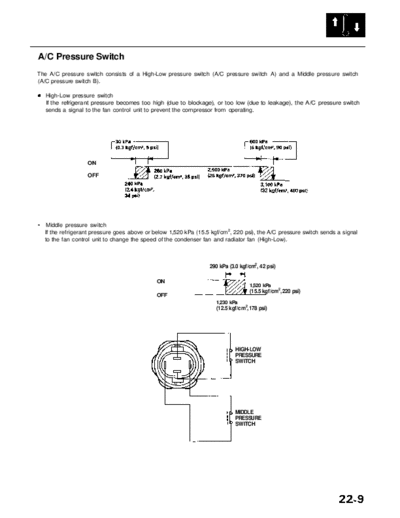

              Main Menu                 Table of Contents




A/C Pressure Switch
The A/C pressure switch consists of a High-Low pressure switch (A/C pressure switch A) and a Middle pressure switch
(A/C pressure switch B).

    High-Low pressure switch
    If the refrigerant pressure becomes too high (due to blockage), or too low (due to leakage), the A/C pressure switch
    sends a signal to the fan control unit to prevent the compressor from operating.




                    ON

                    OFF
