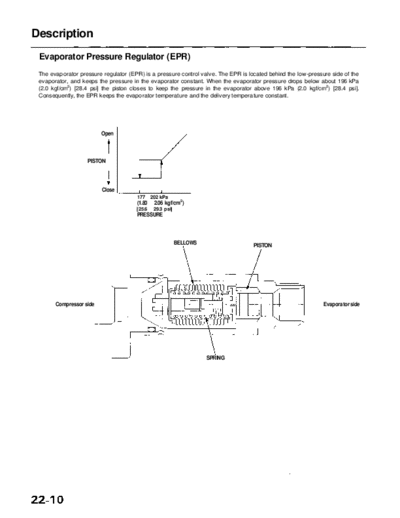

Main Menu Table of Contents
Description
Evaporator Pressure Regulator (EPR)
The evaporator pressure regulator (EPR) is a pressure control valve. The EPR is located behind the low-pressure side of the
evaporator, and keeps the pressure in the evaporator constant. When the evaporator pressure drops below about 196 kPa
(2.0 kgf/cm2) [28.4 psi] the piston closes to keep the pressure in the evaporator above 196 kPa (2.0 kgf/cm2) [28.4 psi].
Consequently, the EPR keeps the evaporator temperature and the delivery temperature constant.
Open
PISTON
Close
177 202 kPa
(1.80 2.06 kgf/cm2)
[25.6 29.3 psi]
PRESSURE
BELLOWS
PISTON
Compressor side Evaporator side
SPRING
