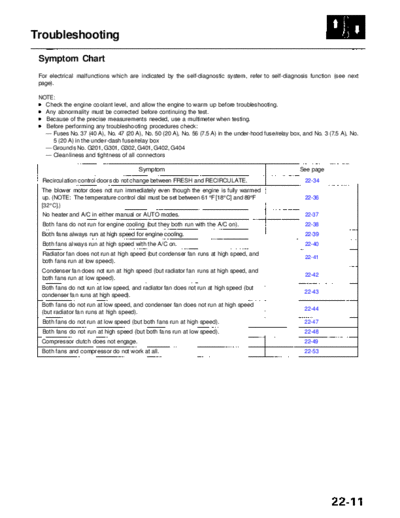

Text preview - extract from the document
               Main Menu                 Table of Contents


Troubleshooting
 Symptom Chart
 For electrical malfunctions which are indicated by the self-diagnostic system, refer to self-diagnosis function (see next
 page).

 NOTE:
   Check the engine coolant level, and allow the engine to warm up before troubleshooting.
   Any abnormality must be corrected before continuing the test.
   Because of the precise measurements needed, use a multimeter when testing.
   Before performing any troubleshooting procedures check:
   -- Fuses No. 37 (40 A), No. 47 (20 A), No. 50 (20 A), No. 56 (7.5 A) in the under-hood fuse/relay box, and No. 3 (7.5 A), No.
      5 (20 A) in the under-dash fuse/relay box
   -- Grounds No. G201, G301, G302, G401, G402, G404
   -- Cleanliness and tightness of all connectors

                                        Symptom                                                         See page
  Recirculation control doors do not change between FRESH and RECIRCULATE.                                22-34
  The blower motor does not run immediately even though the engine is fully warmed
  up. (NOTE: The temperature control dial must be set between 61
