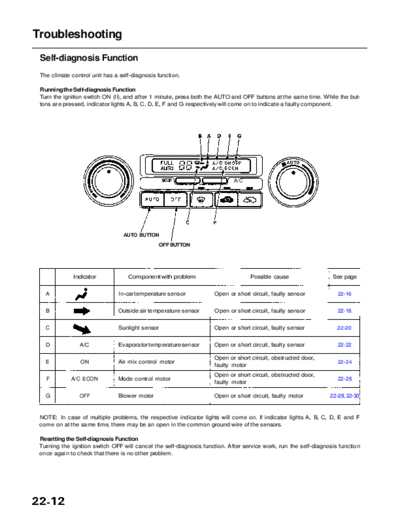

Image preview - the first page of the document



>> Download RL9604S22012A documenatation <<

Text preview - extract from the document

              Main Menu                 Table of Contents


Troubleshooting
 Self-diagnosis Function
 The climate control unit has a self-diagnosis function.

 Running the Self-diagnosis Function
 Turn the ignition switch ON (II), and after 1 minute, press both the AUTO and OFF buttons at the same time. While the but-
 tons are pressed, indicator lights A, B, C, D, E, F and G respectively will come on to indicate a faulty component.




                                                                            A/C




                                 AUTO BUTTON
                                               OFF BUTTON




              Indicator            Component with problem                         Possible cause                  See page


   A                           In-car temperature sensor            Open or short circuit, faulty sensor            22-16


   B                           Outside air temperature sensor       Open or short circuit, faulty sensor            22-18


   C                           Sunlight sensor                      Open or short circuit, faulty sensor            22-20


   D            A/C            Evaporator temperature sensor        Open or short circuit, faulty sensor            22-22

                                                                    Open or short circuit, obstructed door,
   E             ON            Air mix control motor                                                                22-24
                                                                    faulty motor
                                                                    Open or short circuit, obstructed door,
   F         A/C ECON          Mode control motor                                                                   22-26
                                                                    faulty motor

   G            OFF            Blower motor                         Open or short circuit, faulty motor          22-28, 22-30


 NOTE: In case of multiple problems, the respective indicator lights will come on. If indicator lights A, B, C, D, E and F
 come on at the same time, there may be an open in the common ground wire of the sensors.

 Resetting the Self-diagnosis Function
 Turning the ignition switch OFF will cancel the self-diagnosis function. After service work, run the self-diagnosis function
 once again to check that there is no other problem.
