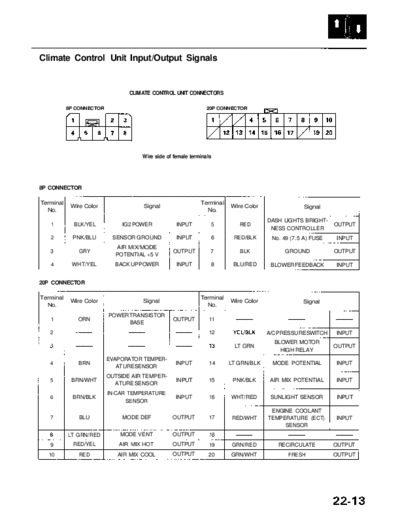

Image preview - the first page of the document



>> Download RL9604S22013A documenatation <<

Text preview - extract from the document

             Main Menu              Table of Contents




Climate Control Unit Input/Output Signals


                                 CLIMATE CONTROL UNIT CONNECTORS

           8P CONNECTOR                                         20P CONNECTOR




                                     Wire side of female terminals




8P CONNECTOR

Terminal                                                     Terminal
            Wire Color               Signal                             Wire Color                Signal
  No.                                                          No.
                                                                                     DASH LIGHTS BRIGHT-
   1         BLK/YEL          IG2 POWER            INPUT         5         RED                               OUTPUT
                                                                                      NESS CONTROLLER
   2         PNK/BLU       SENSOR GROUND           INPUT         6       RED/BLK      No. 49 (7. 5 A) FUSE    INPUT
                            AIR MIX/MODE
   3           GRY                               OUTPUT          7         BLK             GROUND            OUTPUT
                            POTENTIAL +5 V
   4        WHT/YEL         BACK UP POWER          INPUT         8       BLU/RED      BLOWER FEEDBACK         INPUT


20P CONNECTOR

Terminal                                                     Terminal
            Wire Color               Signal                             Wire Color                Signal
  No.                                                          No.
                          POWER TRANSISTOR
   1          ORN                                OUTPUT          11
                                BASE
   2                                                             12                  A/C PRESSURE SWITCH     INPUT
                                                                                       BLOWER MOTOR
   3
                                                                         LT GRN                              OUTPUT
                                                                                         HIGH RELAY
                          EVAPORATOR TEMPER-
   4          BRN                                  INPUT         14     LT GRN/BLK    MODE POTENTIAL         INPUT
                             ATURE SENSOR
                          OUTSIDE AIR TEMPER-
   5        BRN/WHT                                INPUT         15      PNK/BLK      AIR MIX POTENTIAL      INPUT
                            ATURE SENSOR
                          IN-CAR TEMPERATURE
   6         BRN/BLK                               INPUT         16     WHT/RED       SUNLIGHT SENSOR        INPUT
                                SENSOR
                                                                                      ENGINE COOLANT
   7           BLU             MODE DEF          OUTPUT          17     RED/WHT      TEMPERATURE (ECT)       INPUT
                                                                                          SENSOR
           LT GRN/RED         MODE VENT          OUTPUT          18


   9         RED/YEL          AIR MIX HOT        OUTPUT          19      GRN/RED        RECIRCULATE          OUTPUT
   10          RED           AIR MIX COOL        OUTPUT          20     GRN/WHT             FRESH            OUTPUT
