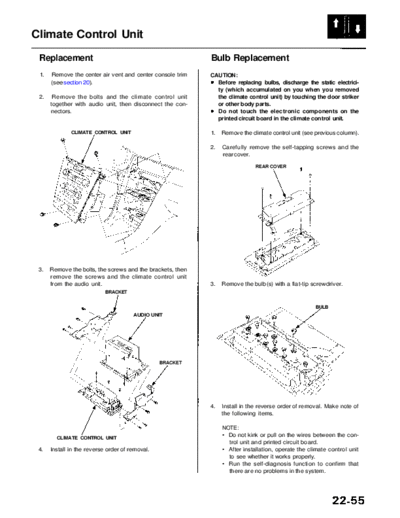

Image preview - the first page of the document



>> Download RL9604S22055A documenatation <<

Text preview - extract from the document

               Main Menu                  Table of Contents


Climate Control Unit

 Replacement                                                  Bulb Replacement
 1.   Remove the center air vent and center console trim      CAUTION:
      (see section 20).                                         Before replacing bulbs, discharge the static electrici-
                                                                ty (which accumulated on you when you removed
 2.    Remove the bolts and the climate control unit            the climate control unit) by touching the door striker
      together with audio unit, then disconnect the con-        or other body parts.
      nectors.                                                  Do not touch the electronic components on the
                                                                printed circuit board in the climate control unit.

              CLIMATE CONTROL UNIT                            1.   Remove the climate control unit (see previous column).

                                                              2.   Carefully remove the self-tapping screws and the
                                                                   rear cover.

                                                                                REAR COVER




 3.   Remove the bolts, the screws and the brackets, then
      remove the screws and the climate control unit
      from the audio unit.                                    3.   Remove the bulb(s) with a flat-tip screwdriver.
                           BRACKET


                                                                                                       BULB
                                       AUDIO UNIT




                                                 BRACKET




                                                              4.   Install in the reverse order of removal. Make note of
                                                                   the following items.

                                                                   NOTE:
        CLIMATE CONTROL UNIT
