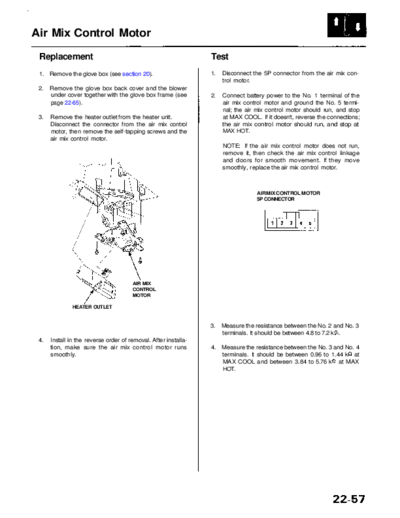

Image preview - the first page of the document



>> Download RL9604S22057A documenatation <<

Text preview - extract from the document

               Main Menu                   Table of Contents


Air Mix Control Motor

 Replacement                                                     Test
 1. Remove the glove box (see section 20).                       1.   Disconnect the 5P connector from the air mix con-
                                                                      trol motor.
 2.   Remove the glove box back cover and the blower
      under cover together with the glove box frame (see         2.   Connect battery power to the No. 1 terminal of the
      page 22-65).                                                    air mix control motor and ground the No. 5 termi-
                                                                      nal; the air mix control motor should run, and stop
 3.   Remove the heater outlet from the heater unit.                  at MAX COOL. If it doesn't, reverse the connections;
      Disconnect the connector from the air mix control               the air mix control motor should run, and stop at
      motor, then remove the self-tapping screws and the              MAX HOT.
      air mix control motor.
                                                                      NOTE: If the air mix control motor does not run,
                                                                      remove it, then check the air mix control linkage
                                                                      and doors for smooth movement. If they move
                                                                      smoothly, replace the air mix control motor.



                                                                                   AIR MIX CONTROL MOTOR
                                                                                   5P CONNECTOR




                                       AIR MIX
                                       CONTROL
                                       MOTOR

               HEATER OUTLET


                                                                 3.   Measure the resistance between the No. 2 and No. 3
                                                                      terminals. It should be between 4.8 to 7.2 k .
 4.   Install in the reverse order of removal. After installa-
      tion, make sure the air mix control motor runs             4.   Measure the resistance between the No. 3 and No. 4
      smoothly.                                                       terminals. It should be between 0.96 to 1.44 k at
                                                                      MAX COOL and between 3.84 to 5.76 k at MAX
                                                                      HOT.
