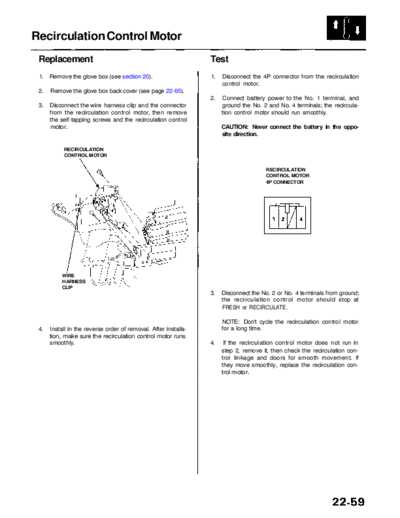

               Main Menu                  Table of Contents


Recirculation Control Motor
 Replacement                                                     Test
 1.   Remove the glove box (see section 20).                     1.   Disconnect the 4P connector from the recirculation
                                                                      control motor.
 2.   Remove the glove box back cover (see page 22-65).
                                                                 2.   Connect battery power to the No. 1 terminal, and
 3.   Disconnect the wire harness clip and the connector              ground the No. 2 and No. 4 terminals; the recircula-
      from the recirculation control motor, then remove               tion control motor should run smoothly.
      the self-tapping screws and the recirculation control
      motor.                                                          CAUTION: Never connect the battery in the oppo-
                                                                      site direction.

           RECIRCULATION
           CONTROL MOTOR


                                                                                      RECIRCULATION
                                                                                      CONTROL MOTOR
                                                                                      4P CONNECTOR




           WIRE
           HARNESS
           CLIP
                                                                 3.   Disconnect the No. 2 or No. 4 terminals from ground;
                                                                      the recirculation control motor should stop at
                                                                      FRESH or RECIRCULATE.

                                                                      NOTE: Don't cycle the recirculation control motor
 4.   Install in the reverse order of removal. After installa-        for a long time.
      tion, make sure the recirculation control motor runs
      smoothly.                                                  4.    If the recirculation control motor does not run in
                                                                      step 2, remove it, then check the recirculation con-
                                                                      trol linkage and doors for smooth movement. If
                                                                      they move smoothly, replace the recirculation con-
                                                                      trol motor.
