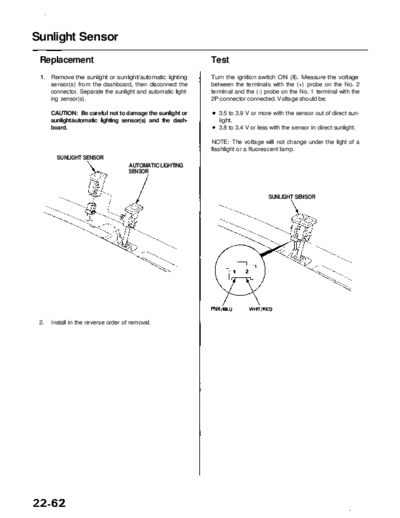

               Main Menu                 Table of Contents


Sunlight Sensor
 Replacement                                                  Test
      Remove the sunlight or sunlight/automatic lighting      Turn the ignition switch ON (II). Measure the voltage
      sensor(s) from the dashboard, then disconnect the       between the terminals with the (+) probe on the No. 2
      connector. Separate the sunlight and automatic light-   terminal and the (-) probe on the No. 1 terminal with the
      ing sensor(s).                                          2P connector connected. Voltage should be;

      CAUTION: Be careful not to damage the sunlight or          3.5 to 3.9 V or more with the sensor out of direct sun-
      sunlight/automatic lighting sensor(s) and the dash-        light.
      board.                                                     3.8 to 3.4 V or less with the sensor in direct sunlight.

                                                              NOTE: The voltage will not change under the light of a
                                                              flashlight or a fluorescent lamp.
        SUNLIGHT SENSOR
                                     AUTOMATIC LIGHTING
                                     SENSOR



                                                                                    SUNLIGHT SENSOR




 2.   Install in the reverse order of removal.
