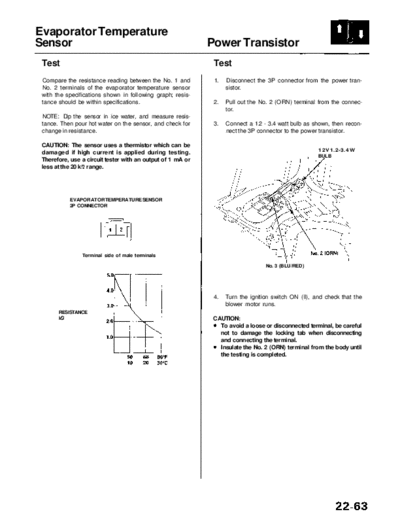

Image preview - the first page of the document



>> Download RL9604S22063A documenatation <<

Text preview - extract from the document

             Main Menu                  Table of Contents


Evaporator Temperature
Sensor                                                       Power Transistor
 Test                                                         Test
 Compare the resistance reading between the No. 1 and         1.   Disconnect the 3P connector from the power tran-
 No. 2 terminals of the evaporator temperature sensor              sistor.
 with the specifications shown in following graph; resis-
 tance should be within specifications.                       2.   Pull out the No. 2 (ORN) terminal from the connec-
                                                                   tor.
 NOTE: Dip the sensor in ice water, and measure resis-
 tance. Then pour hot water on the sensor, and check for      3.   Connect a 1.2 - 3.4 watt bulb as shown, then recon-
 change in resistance.                                             nect the 3P connector to the power transistor.

 CAUTION: The sensor uses a thermistor which can be
                                                                                                      12V 1.2-3.4 W
 damaged if high current is applied during testing.
                                                                                                      BULB
 Therefore, use a circuit tester with an output of 1 mA or
 less at the 20 k range.




           EVAPORATOR TEMPERATURE SENSOR
           2P CONNECTOR




                Terminal side of male terminals

                                                                                  No. 3 (BLU/RED)




                                                              4.   Turn the ignition switch ON (II), and check that the
                                                                   blower motor runs.
       RESISTANCE
       k                                                      CAUTION:
                                                                To avoid a loose or disconnected terminal, be careful
                                                                not to damage the locking tab when disconnecting
                                                                and connecting the terminal.
                                                                Insulate the No. 2 (ORN) terminal from the body until
                                                                the testing is completed.
