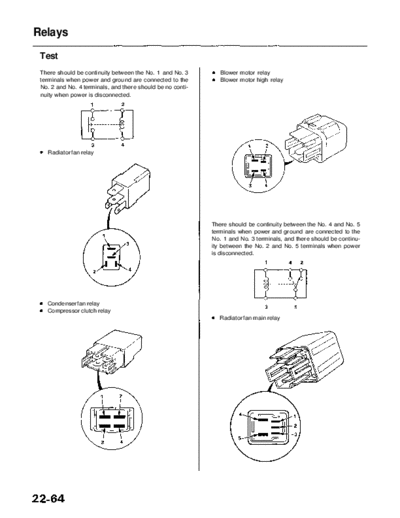

RL9604S22064A


>> Download RL9604S22064A documenatation <<

Text preview - extract from the document
              Main Menu               Table of Contents

Relays
 Test
 There should be continuity between the No. 1 and No. 3        Blower motor relay
 terminals when power and ground are connected to the          Blower motor high relay
 No. 2 and No. 4 terminals, and there should be no conti-
 nuity when power is disconnected.




    Radiator fan relay




                                                            There should be continuity between the No. 4 and No. 5
                                                            terminals when power and ground are connected to the
                                                            No. 1 and No. 3 terminals, and there should be continu-
                                                            ity between the No. 2 and No. 5 terminals when power
                                                            is disconnected.




   Condenser fan relay
   Compressor clutch relay
                                                              Radiator fan main relay
