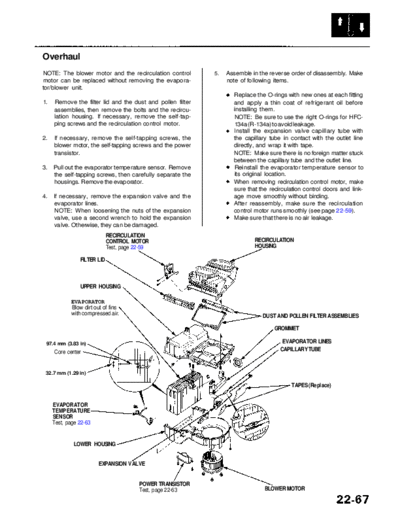

Image preview - the first page of the document



>> Download RL9604S22067A documenatation <<

Text preview - extract from the document

              Main Menu                   Table of Contents




Overhaul
NOTE: The blower motor and the recirculation control          5.   Assemble in the reverse order of disassembly. Make
motor can be replaced without removing the evapora-                note of following items.
tor/blower unit.
                                                                     Replace the O-rings with new ones at each fitting
1.   Remove the filter lid and the dust and pollen filter            and apply a thin coat of refrigerant oil before
     assemblies, then remove the bolts and the recircu-              installing them.
     lation housing. If necessary, remove the self-tap-              NOTE: Be sure to use the right O-rings for HFC-
     ping screws and the recirculation control motor.                134a (R-134a) to avoid leakage.
                                                                     Install the expansion valve capillary tube with
2.   If necessary, remove the self-tapping screws, the               the capillary tube in contact with the outlet line
     blower motor, the self-tapping screws and the power             directly, and wrap it with tape.
     transistor.                                                     NOTE: Make sure there is no foreign matter stuck
                                                                     between the capillary tube and the outlet line.
3.   Pull out the evaporator temperature sensor. Remove              Reinstall the evaporator temperature sensor to
     the self-tapping screws, then carefully separate the            its original location.
     housings. Remove the evaporator.                                When removing recirculation control motor, make
                                                                     sure that the recirculation control doors and link-
4.   If necessary, remove the expansion valve and the                age move smoothly without binding.
     evaporator lines.                                               After reassembly, make sure the recirculation
     NOTE: When loosening the nuts of the expansion                  control motor runs smoothly (see page 22-59).
     valve, use a second wrench to hold the expansion                Make sure that there is no air leakage.
     valve. Otherwise, they can be damaged.
                             RECIRCULATION
                             CONTROL MOTOR                                   RECIRCULATION
                             Test, page 22-59                                HOUSING

                FILTER LID



                UPPER HOUSING

            EVAPORATOR
            Blow dirt out of fins
            with compressed air.                                                DUST AND POLLEN FILTER ASSEMBLIES

                                                                                    GROMMET

 97.4 mm (3.83 in)                                                                      EVAPORATOR LINES
     Core center                                                                       CAPILLARY TUBE



 32.7 mm (1.29 in)

                                                                                           TAPES (Replace)


     EVAPORATOR
     TEMPERATURE
     SENSOR
     Test, page 22-63


             LOWER HOUSING


                        EXPANSION VALVE


                                         POWER TRANSISTOR
                                         Test, page 22-63                        BLOWER MOTOR
