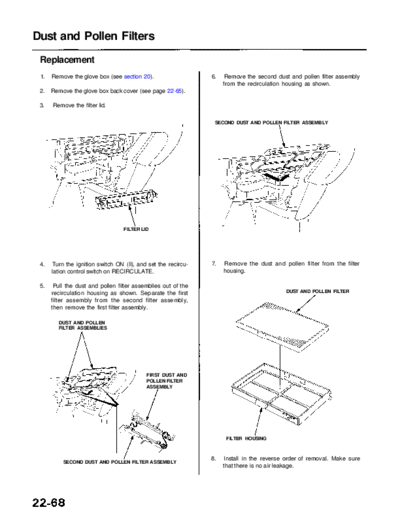

Text preview - extract from the document

               Main Menu                 Table of Contents


Dust and Pollen Filters
 Replacement
 1.   Remove the glove box (see section 20).                   6.    Remove the second dust and pollen filter assembly
                                                                    from the recirculation housing as shown.
 2.   Remove the glove box back cover (see page 22-65).

 3.   Remove the filter lid.

                                                                SECOND DUST AND POLLEN FILTER ASSEMBLY




                                  FILTER LID




 4.   Turn the ignition switch ON (II), and set the recircu-   7.   Remove the dust and pollen filter from the filter
      lation control switch on RECIRCULATE.                         housing.

 5.    Pull the dust and pollen filter assemblies out of the
      recirculation housing as shown. Separate the first                                   DUST AND POLLEN FILTER
      filter assembly from the second filter assembly,
      then remove the first filter assembly.

        DUST AND POLLEN
        FILTER ASSEMBLIES




                                           FIRST DUST AND
                                           POLLEN FILTER
                                           ASSEMBLY




                                                                     FILTER HOUSING



                                                               8.   Install in the reverse order of removal. Make sure
          SECOND DUST AND POLLEN FILTER ASSEMBLY
                                                                    that there is no air leakage.
